Indexing/Dividing Head Controller
|

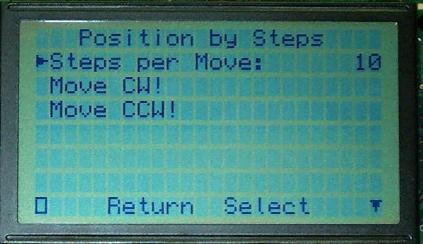

Position Adjustment By Steps Menu |
 |
|
This menu allows the operator to adjust the spindle position by specifying a number of stepper motor steps
using the first menu item. The steps will be full steps or half steps depending on how the stepper motor
parameters have been set up.
The data editing screen for this item may be seen here.
The second and third items effect motion in the clockwise and counter-clockwise directions, respectively. |
