The files available here comprise drawings for a steel/pipe/tubing bender similar to the Hossfeld #2 bender.
The drawings were originally posted by Robert Grauman at http://www.compusmart.ab.ca/rgrauman/bendx.htm.
Note: on my Hossfeld #2 bender the spacing of the 25/32" diameter holes on the main frame and swinging
frame assemblies (sheets 2 and 3) is closer to 1-1/8".
| bender_dxf.zip |
A .zip file containing all 38 .dxf files - about 250KB. |
| bender_jpg.zip |
A .zip file containing 38 individual image files - about 2.1MB. |
| bender_pdf.zip |
A .zip file containing 38 individual PDF files - about 400KB. |
| bender.pdf |
A single PDF file containing all 38 drawings - about 350KB. |
The links below refer to the individual .jpg images (about 80KB each).
|

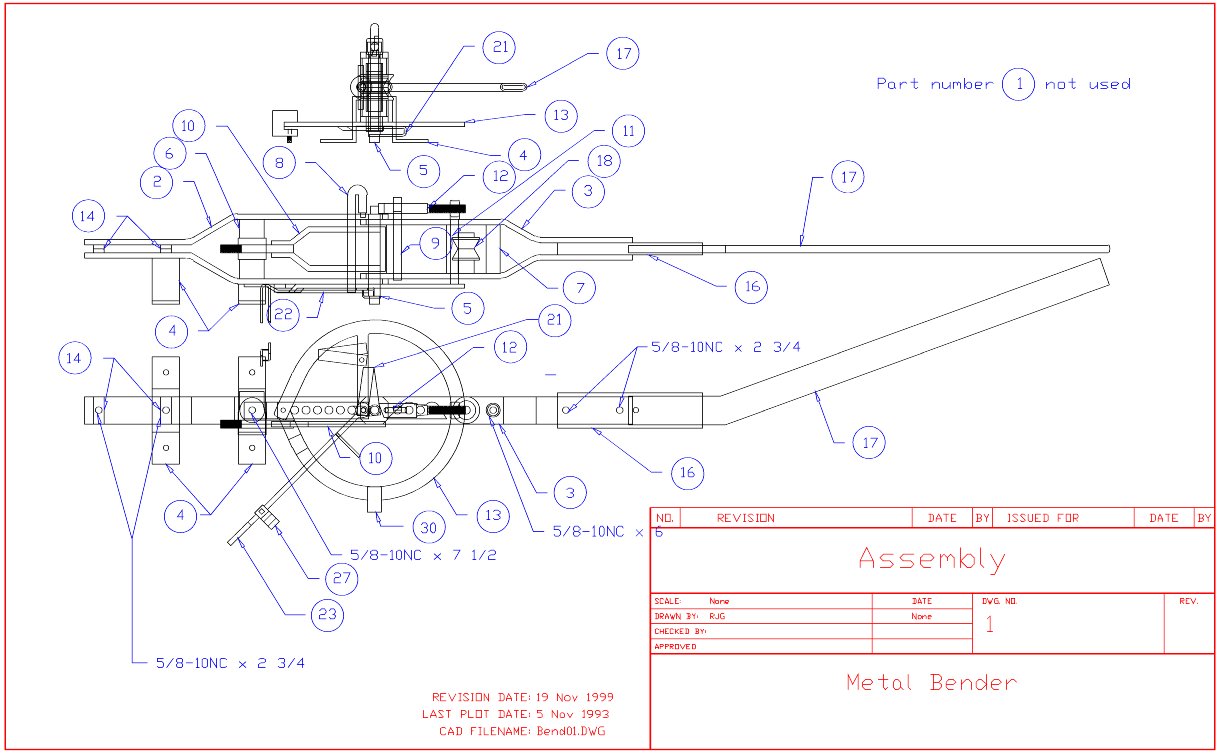

| Sheet 01 | Bender Assembly |

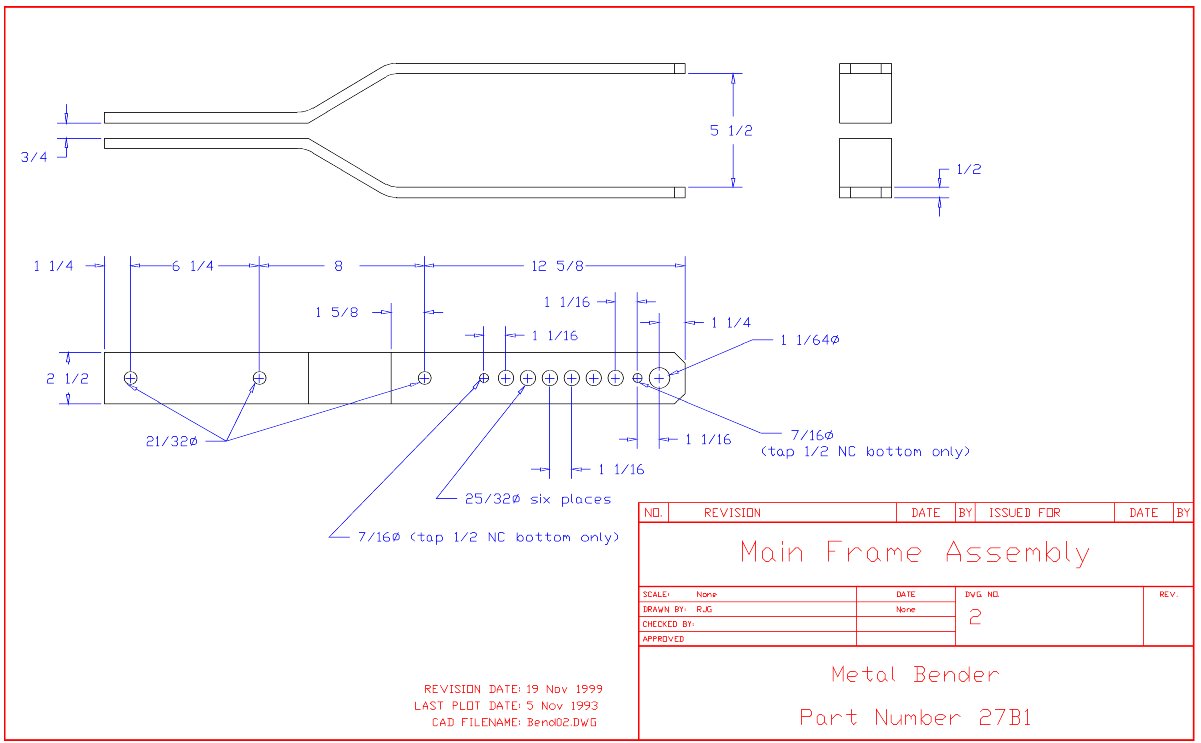

Sheet 02 | Main Frame Arms |

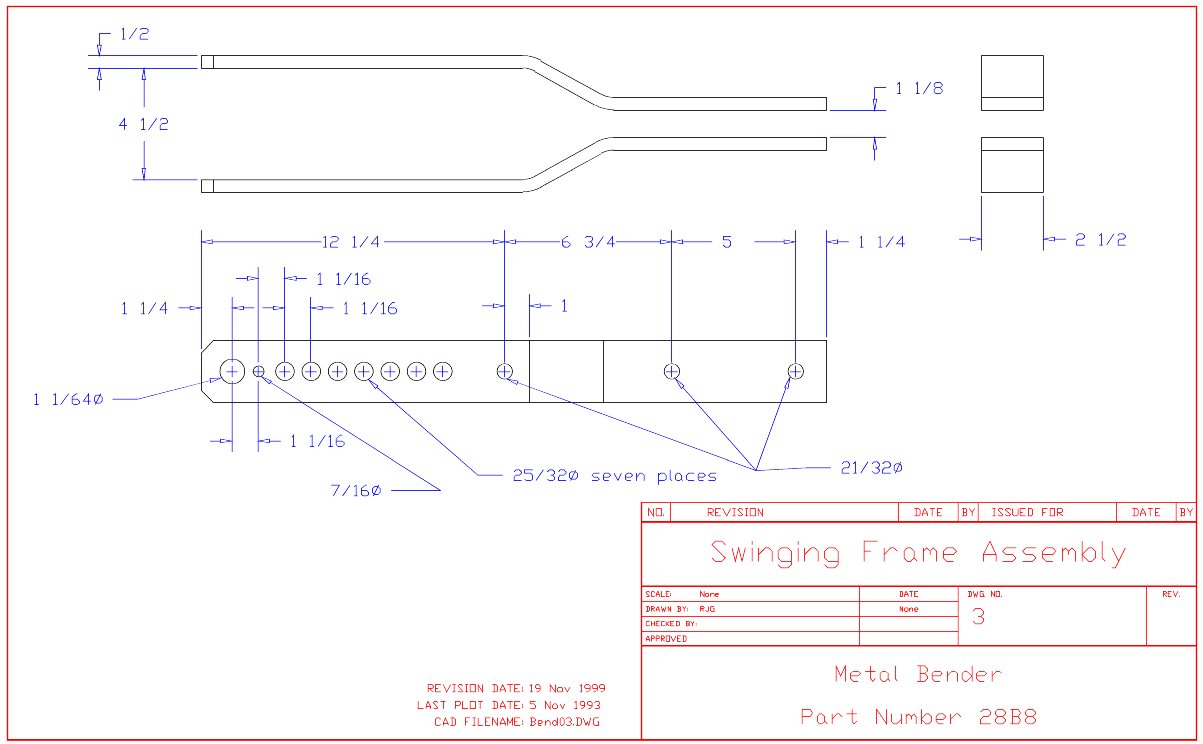

| Sheet 03 | Swinging Frame Arms |

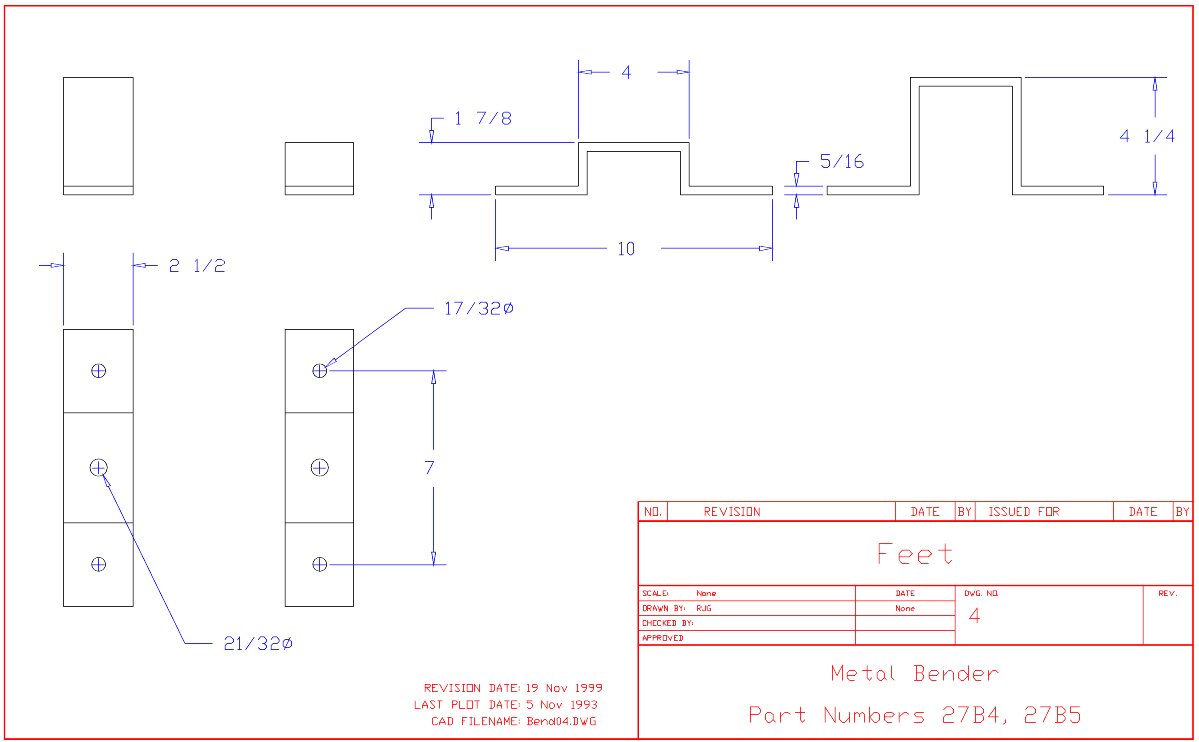

Sheet 04 | Main Frame Feet |

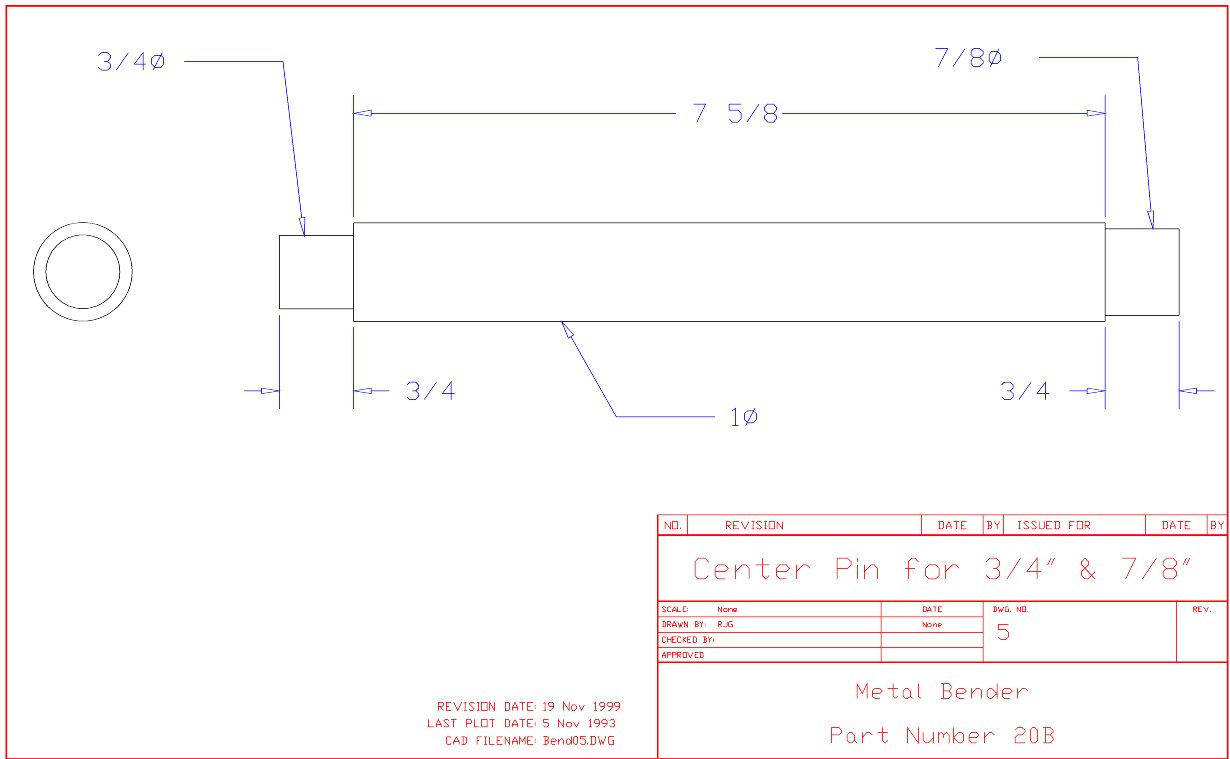

| Sheet 05 | Center Pin, 3/4" and 7/8" Eye |

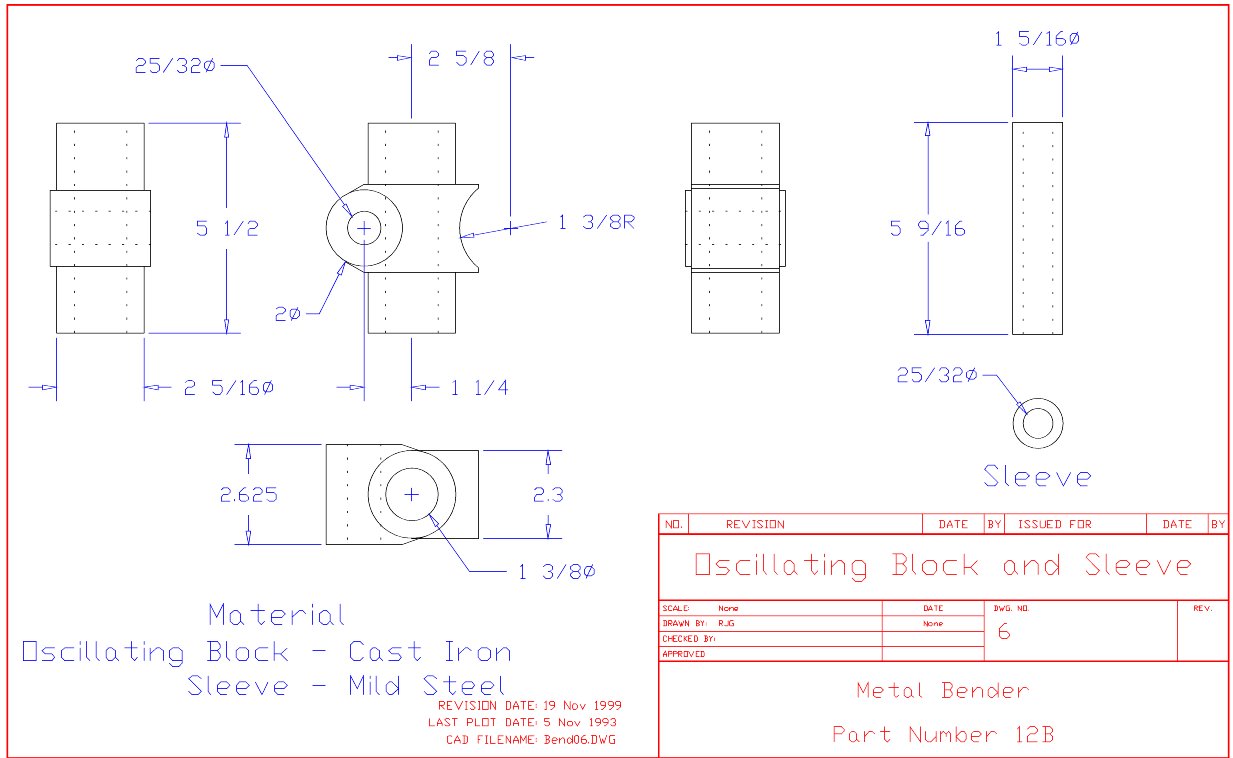

Sheet 06 | Oscillating Block and Sleeve |

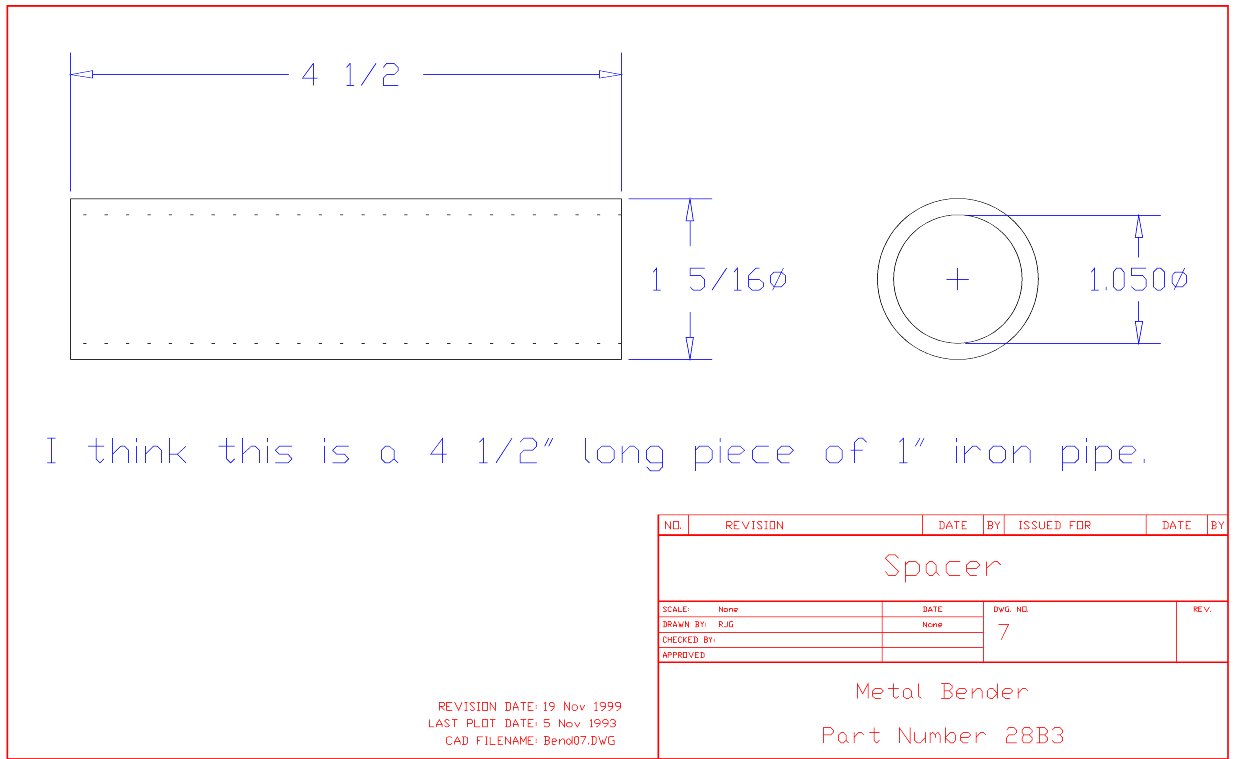

| Sheet 07 | Swinging Arm Spacer |

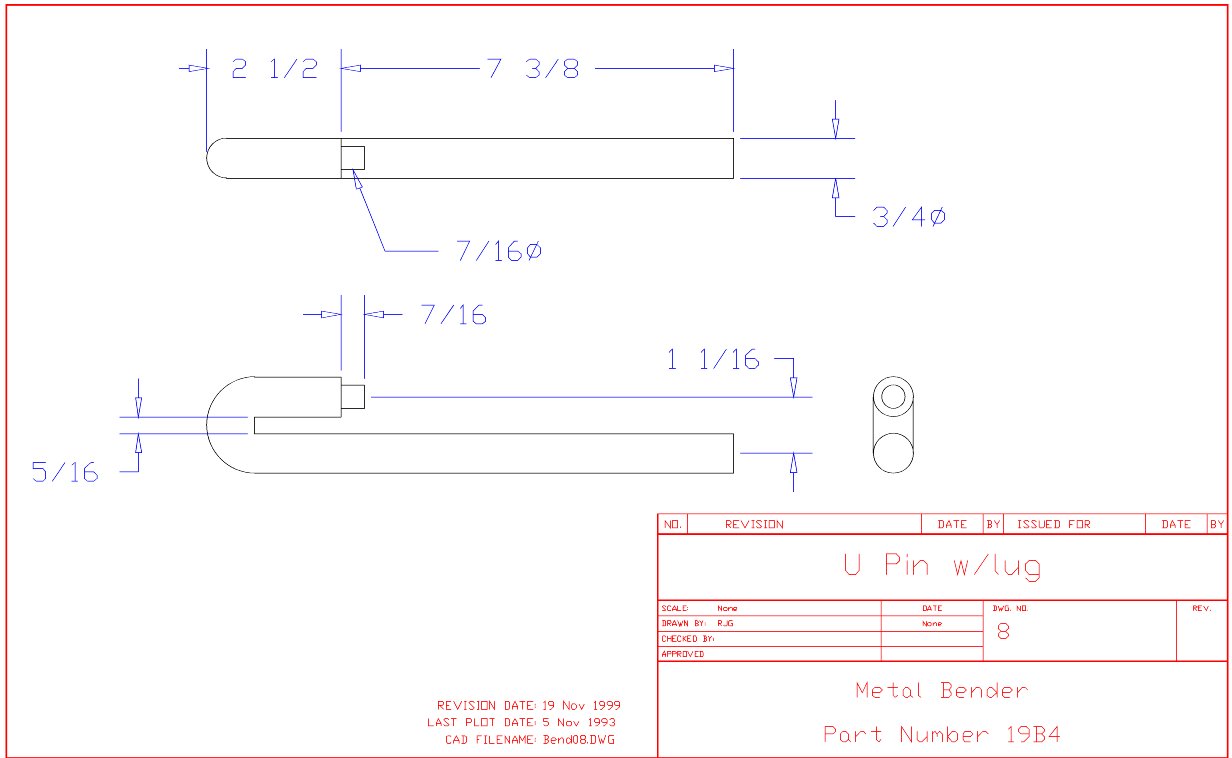

Sheet 08 | U-pin with Lug, 19B4 |

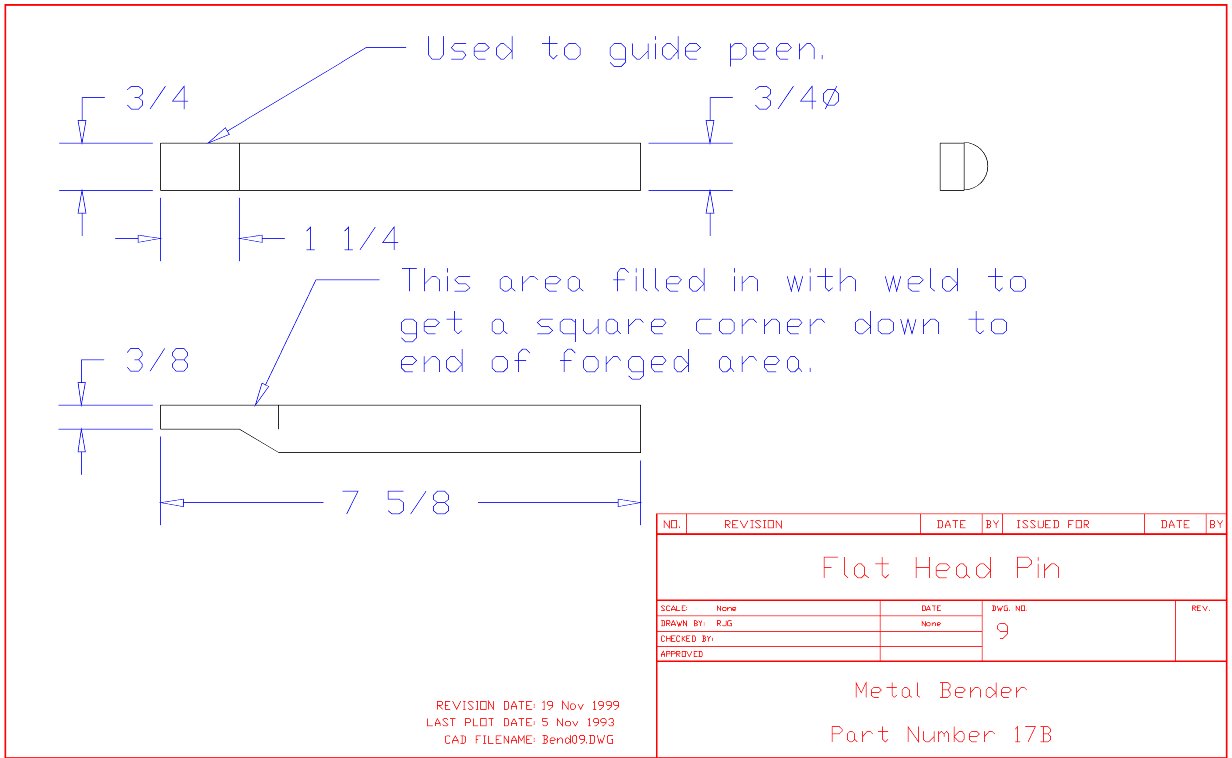

| Sheet 09 | Flat Head Pin, 17B |

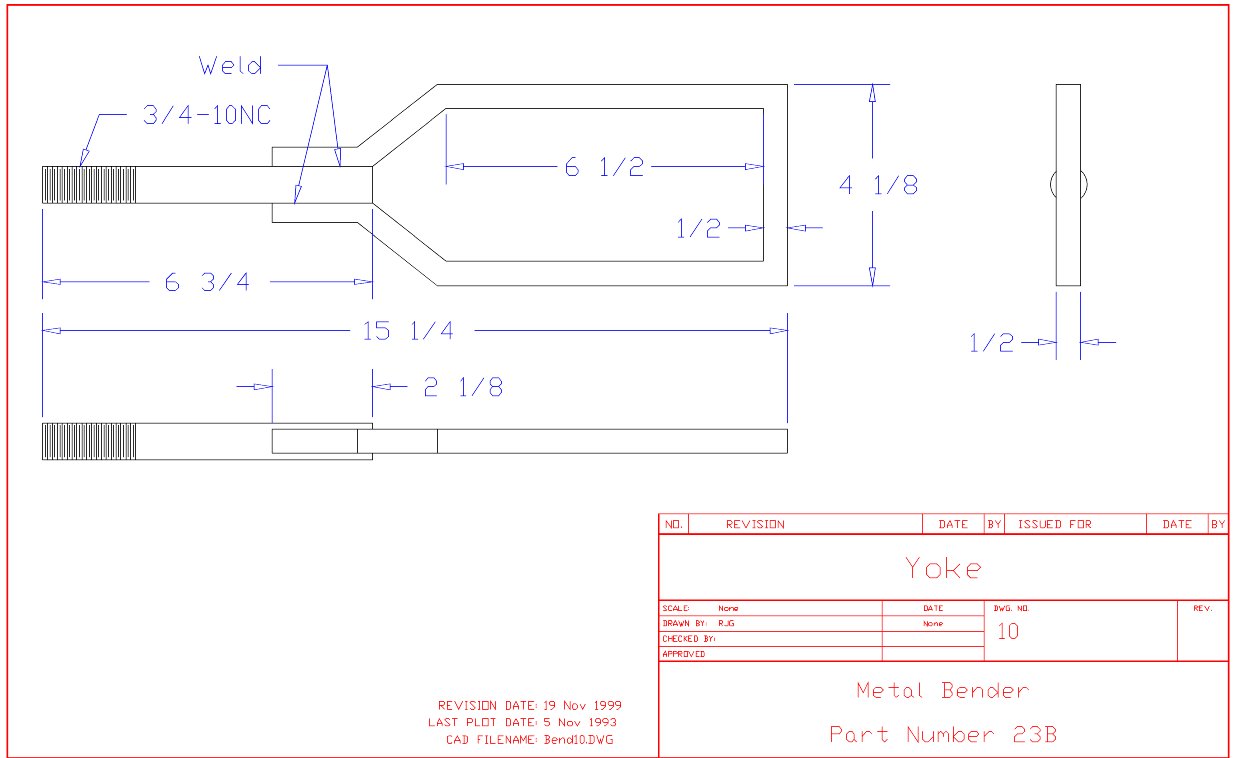

Sheet 10 | Yoke, 23B |

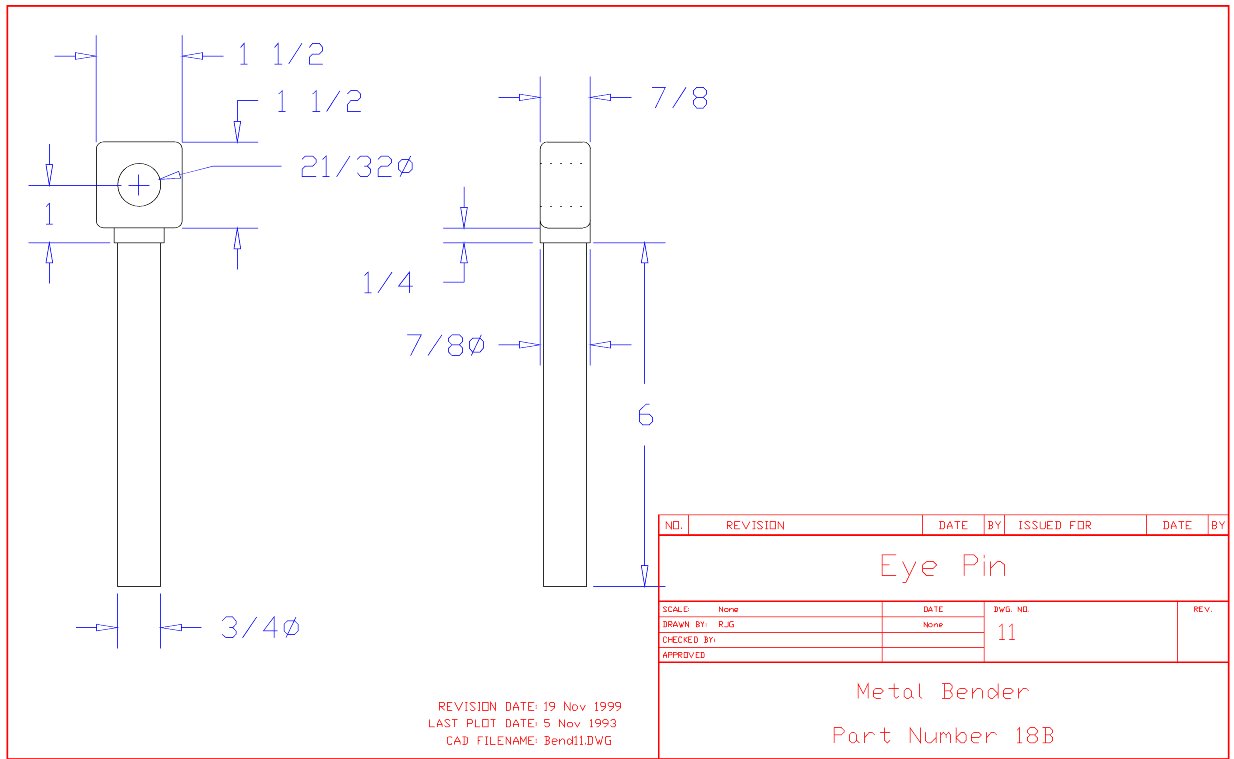

| Sheet 11 | Eye Pin, 18B |

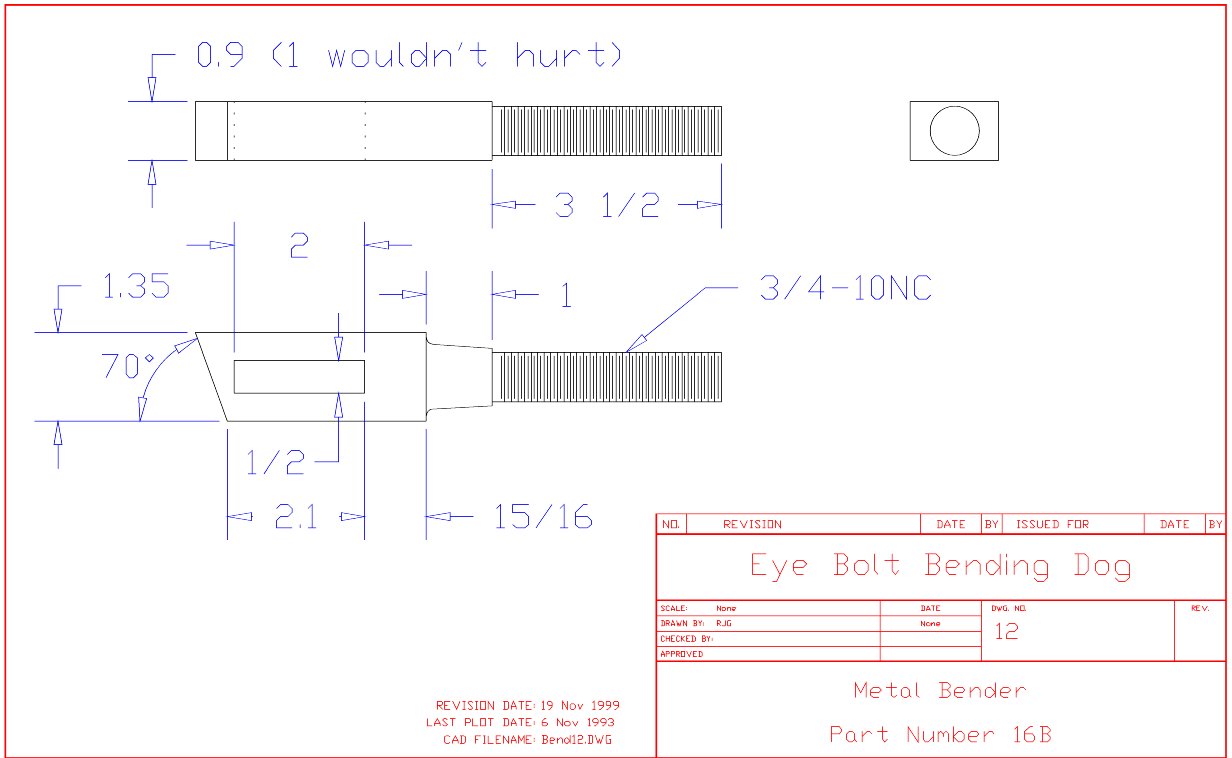

Sheet 12 | Eye Bold Bending Dog, 16B |

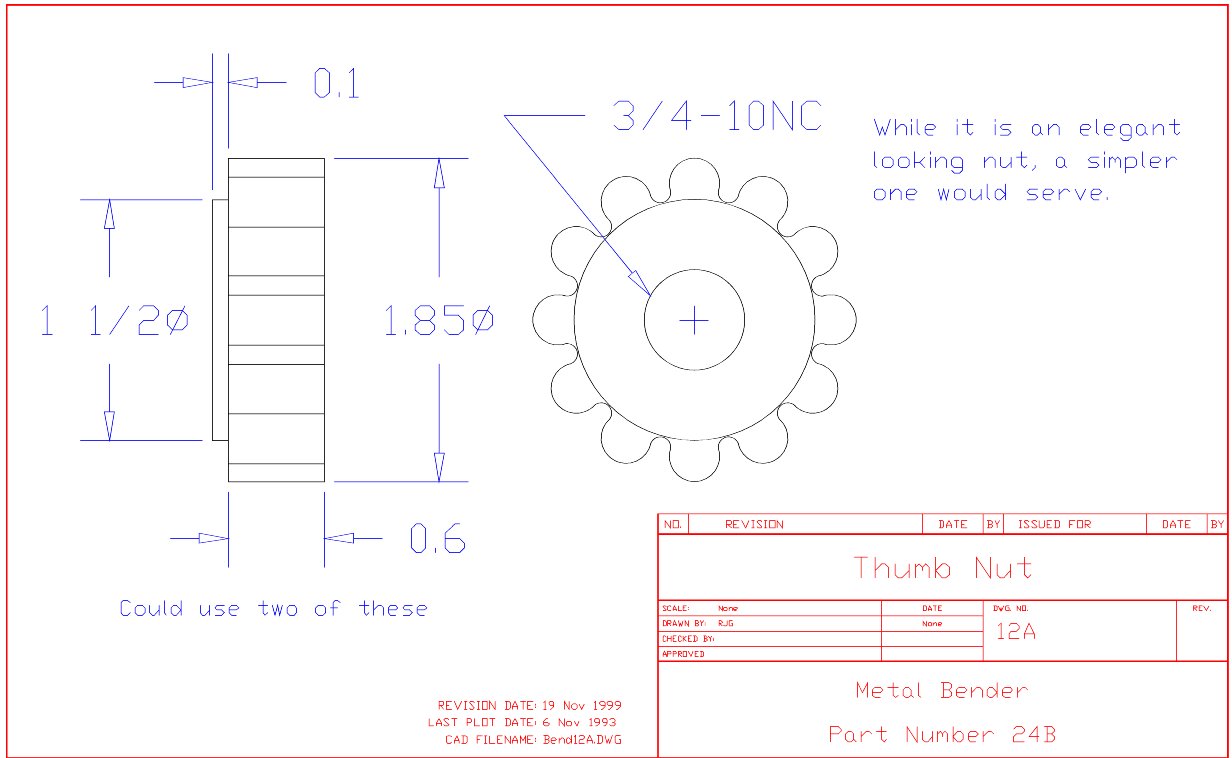

| Sheet 12a | Thumb Nut, 24B |

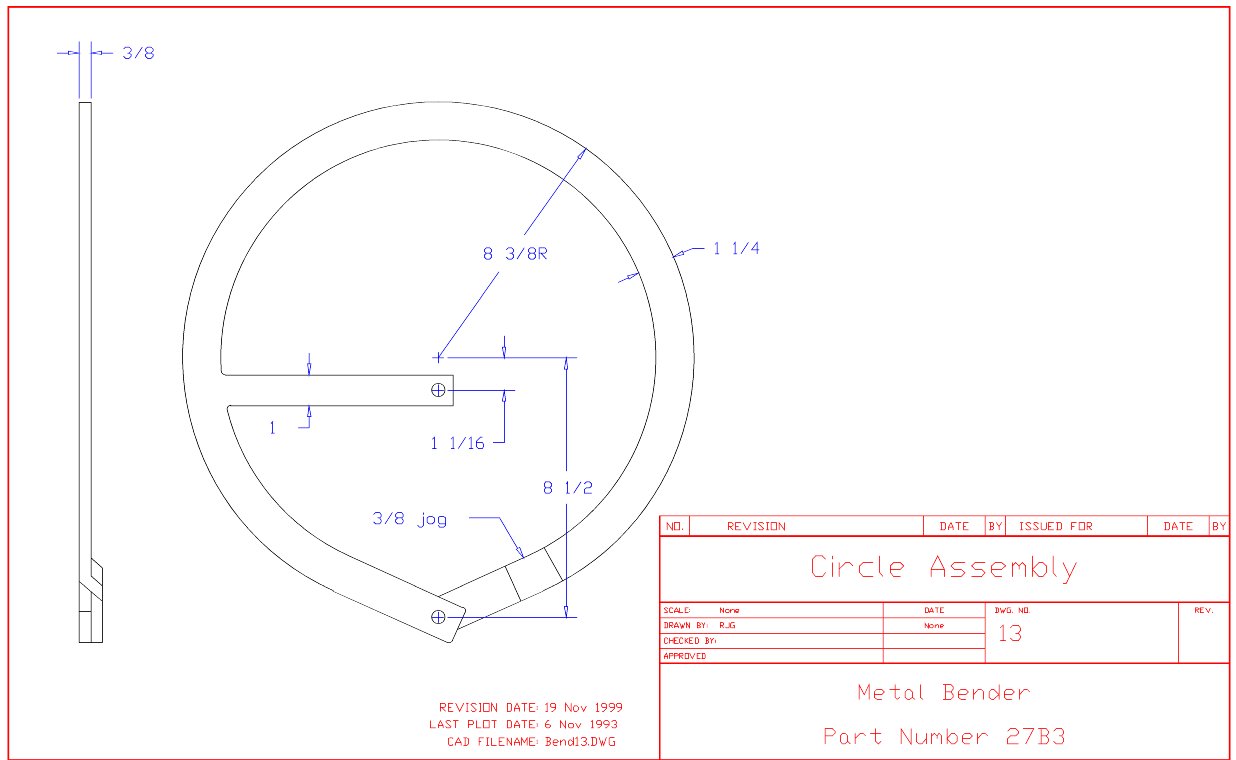

Sheet 13 | Circle Assembly |

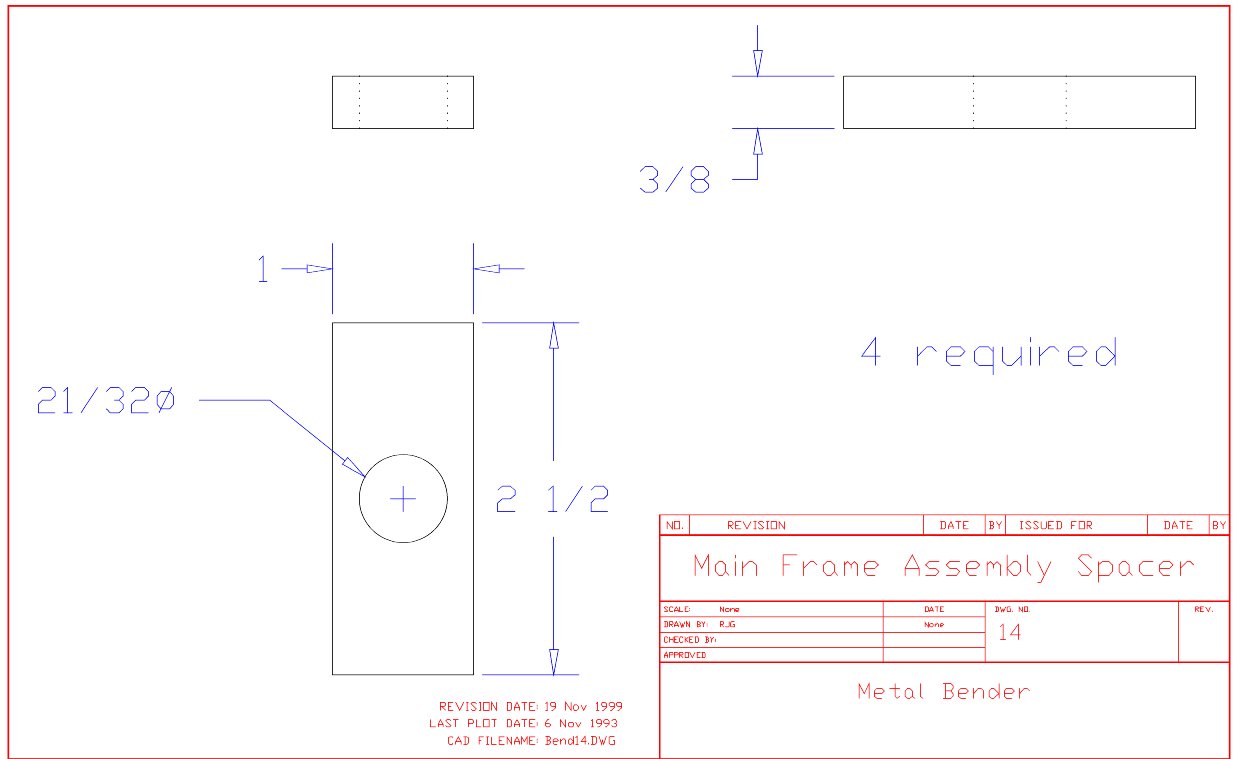

| Sheet 14 | Main Frame Arm Spacer |

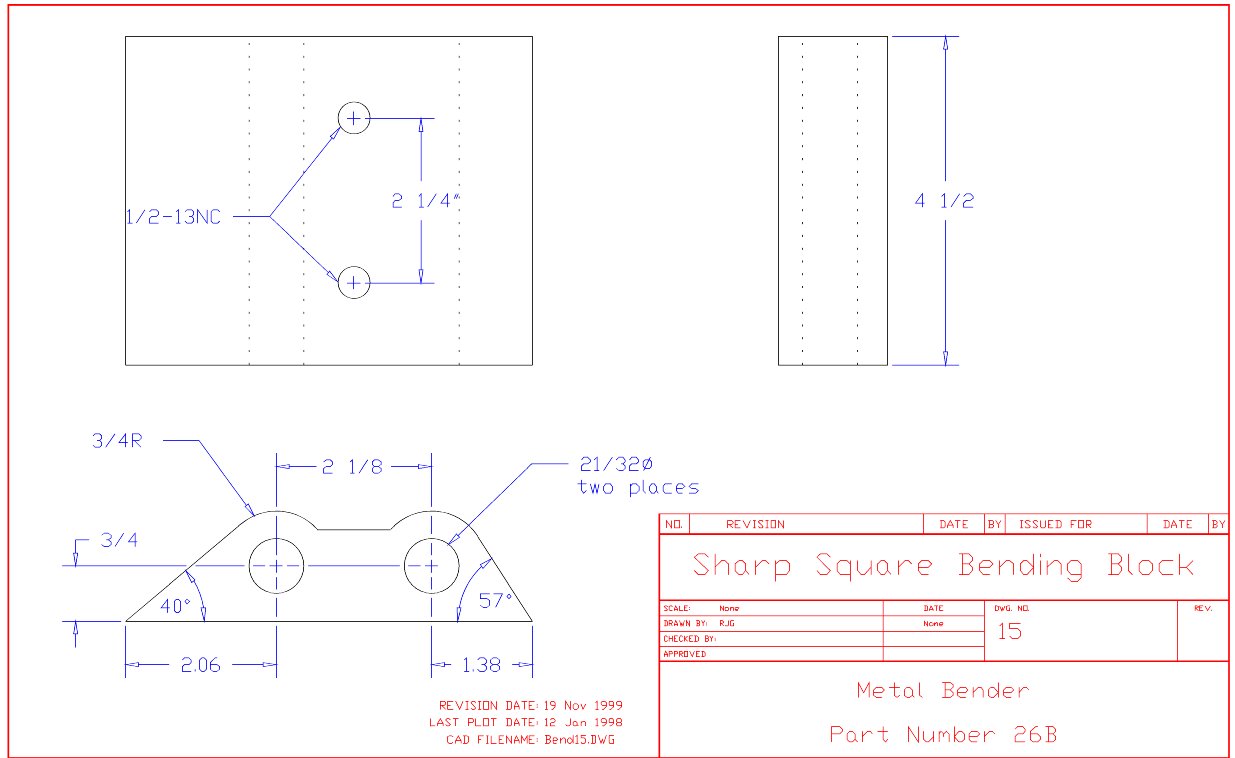

Sheet 15 | Sharp Square Bending Block, 26B |

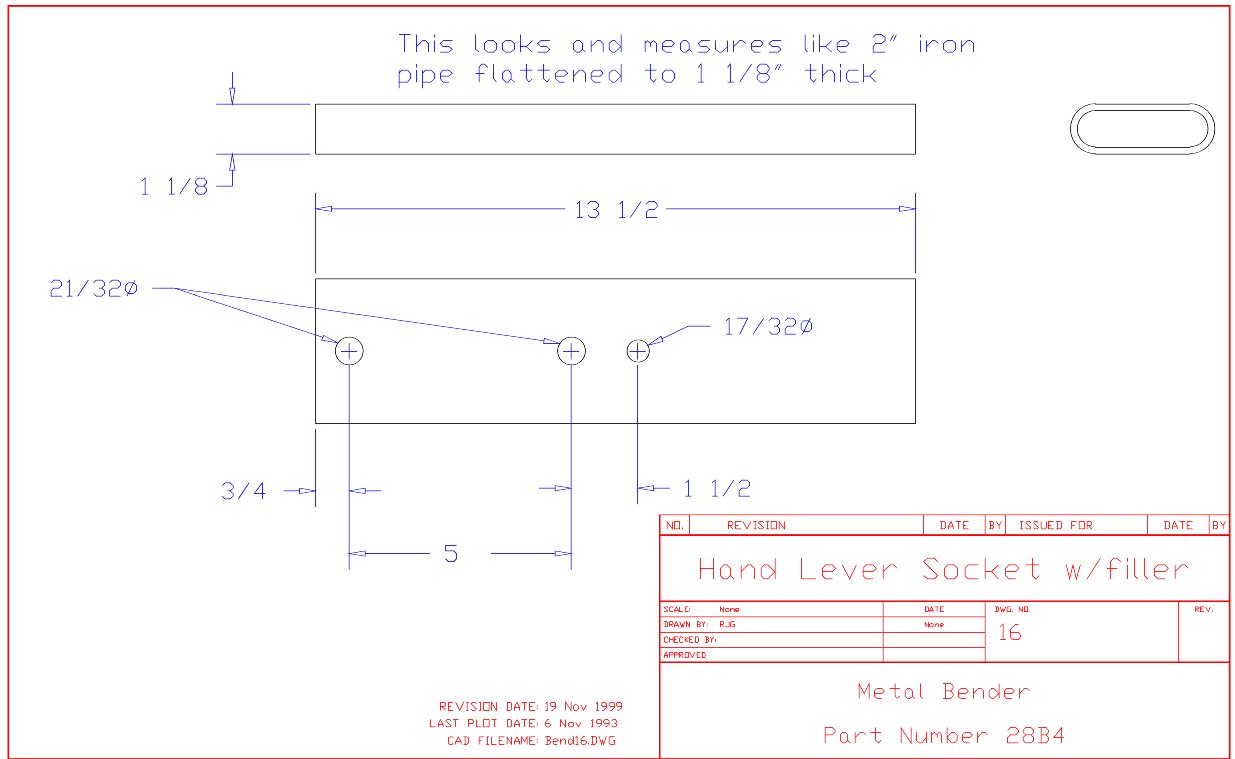

| Sheet 16 | Hand Lever Sleeve Socket |

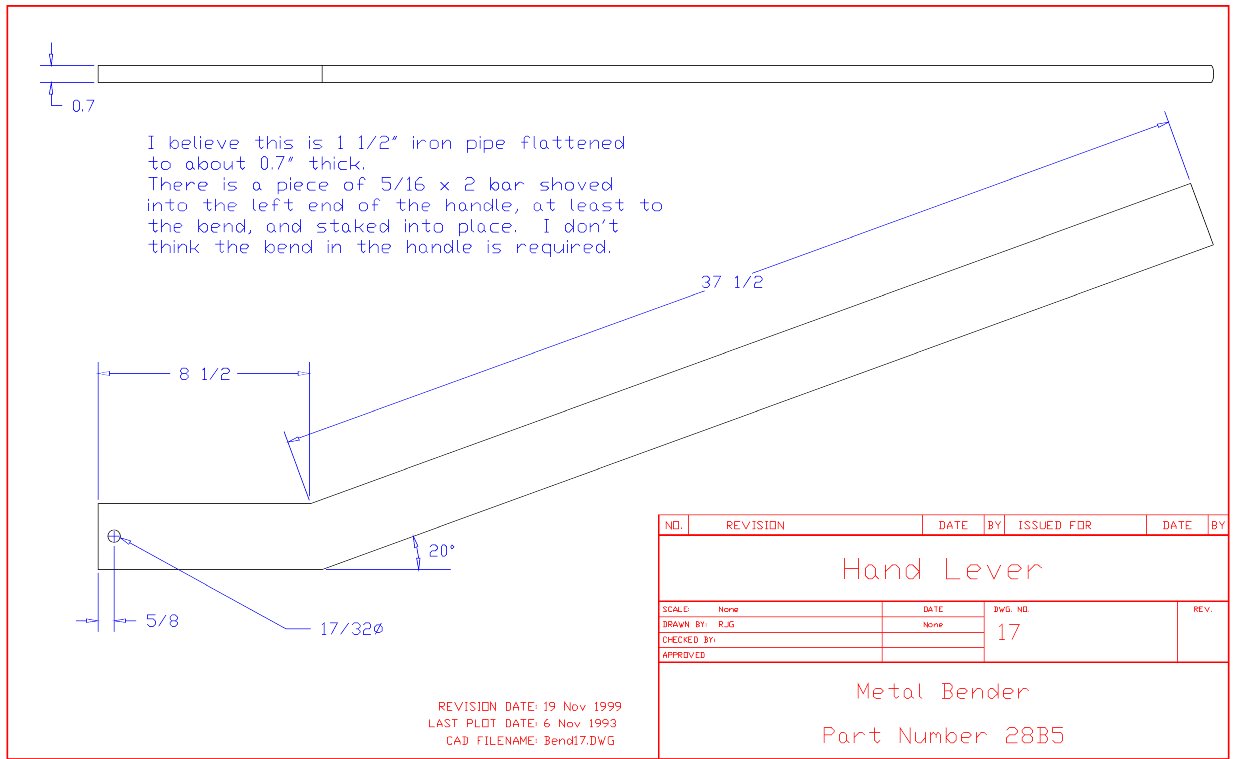

Sheet 17 | Hand Lever |

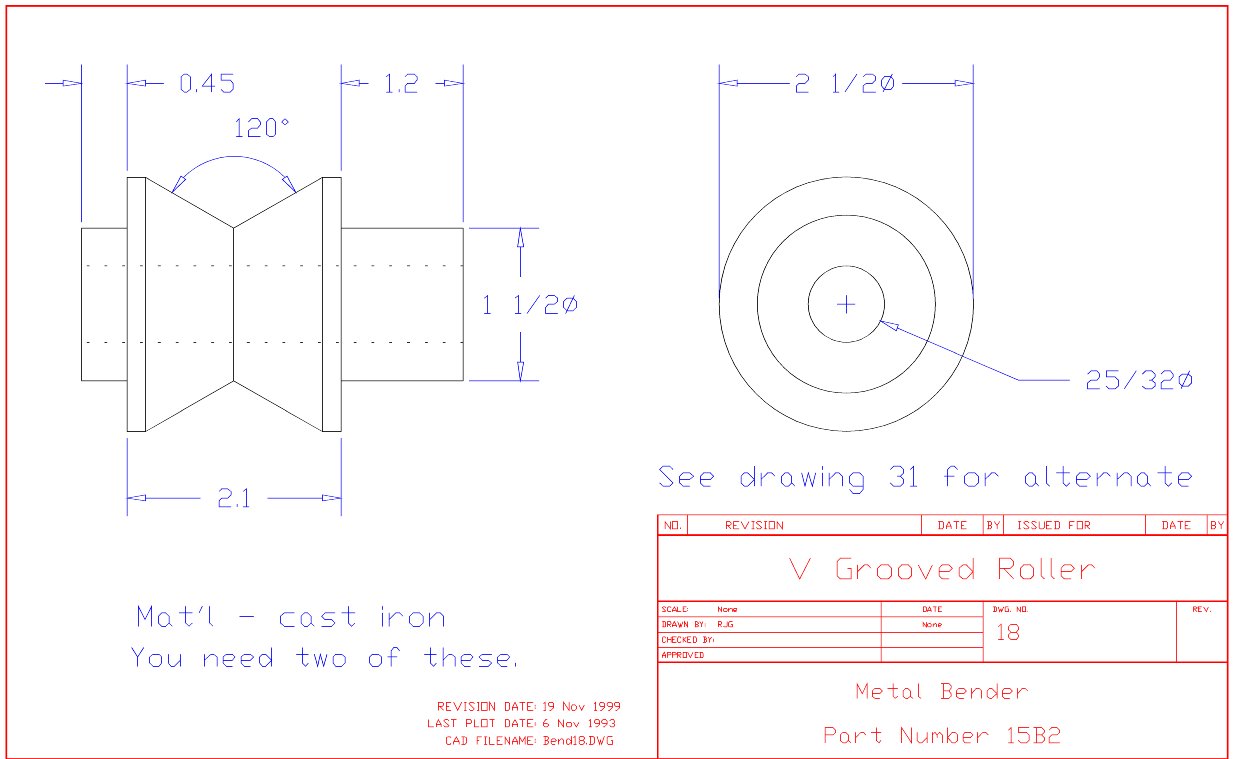

| Sheet 18 | V-grooved Roller, 15B2 |

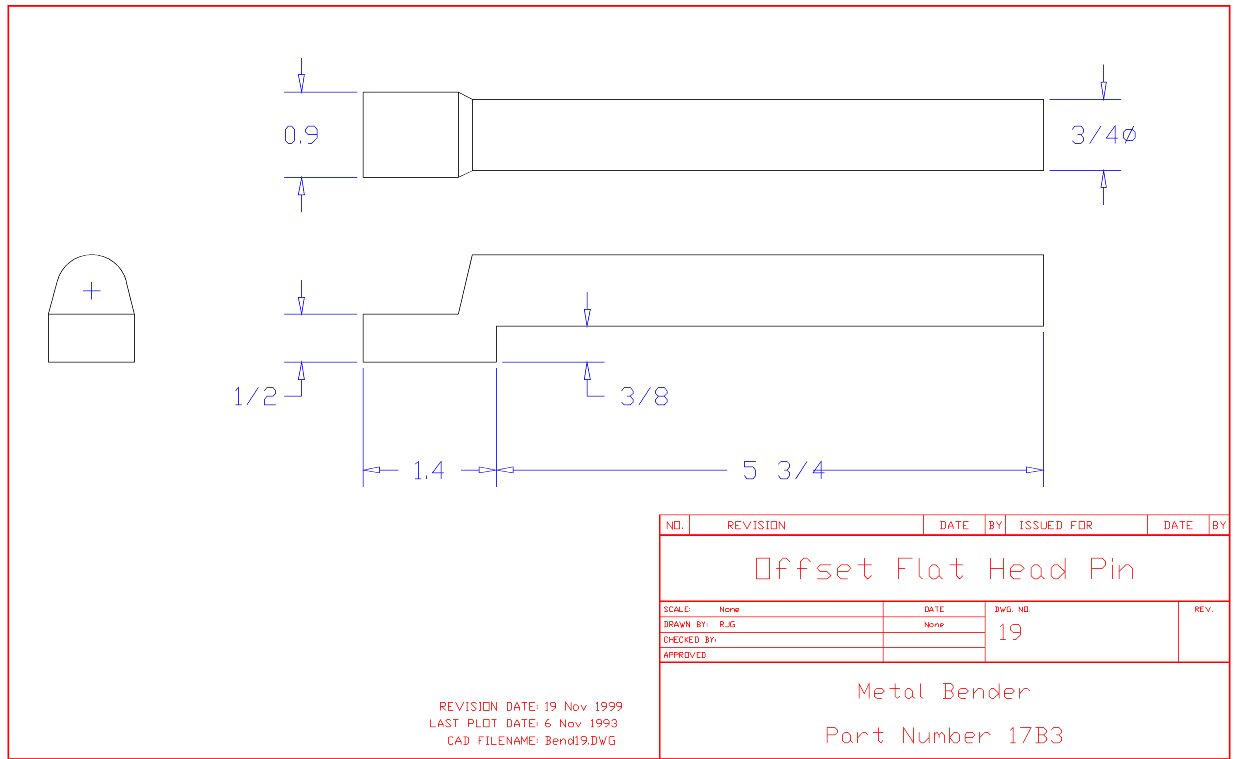

Sheet 19 | Offset Flat Head Pin, 17B3 |

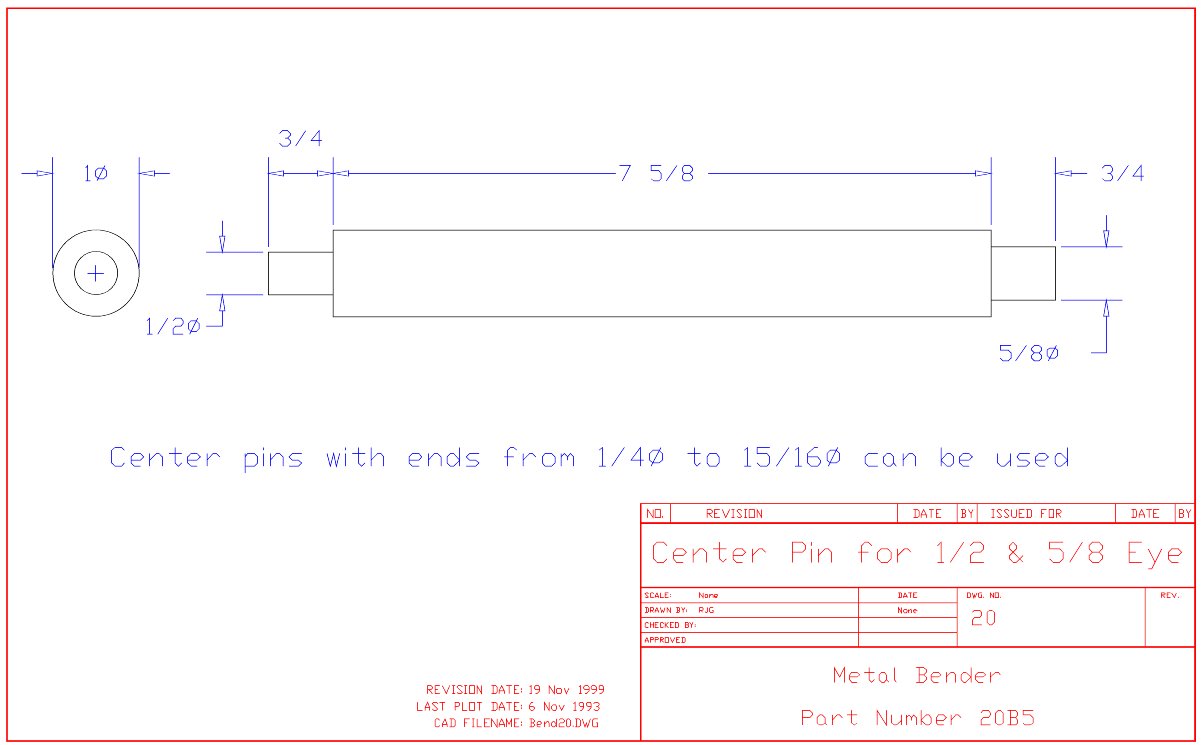

| Sheet 20 | Center Pin, 1/2" and 5/8" Eye |

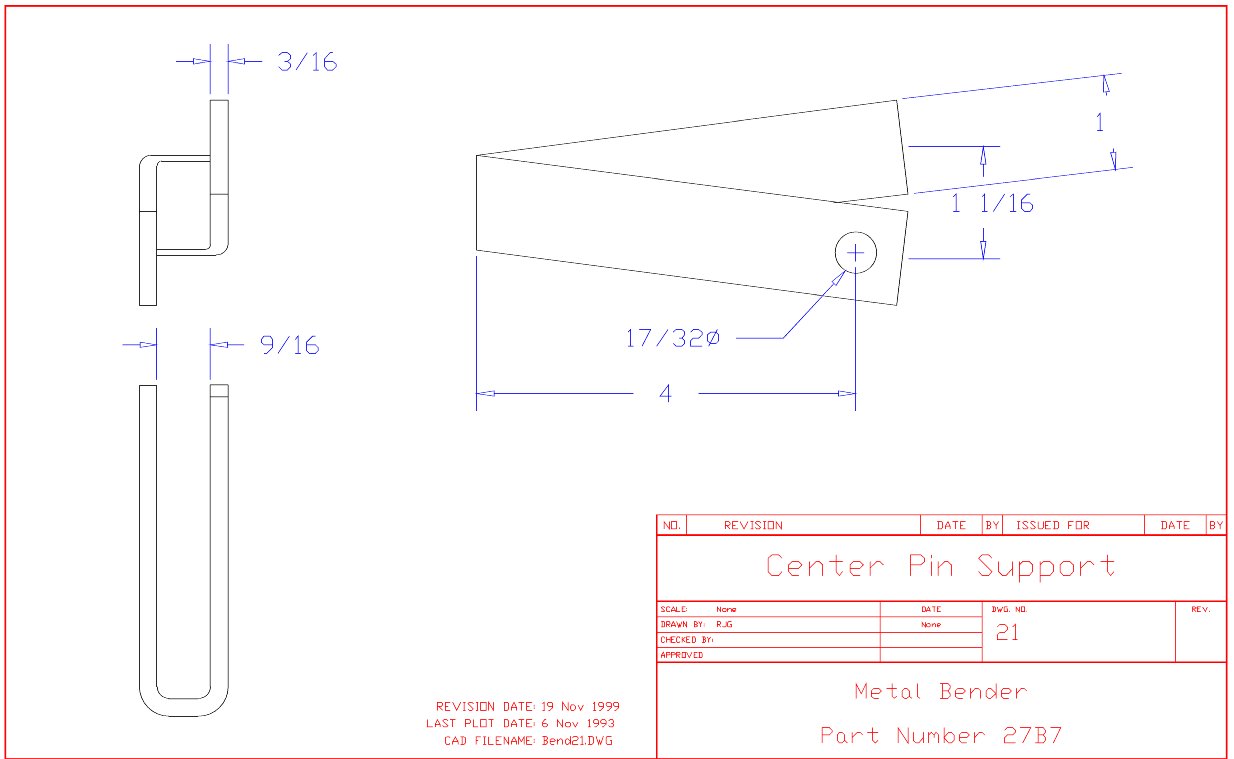

Sheet 21 | Center Pin Support |

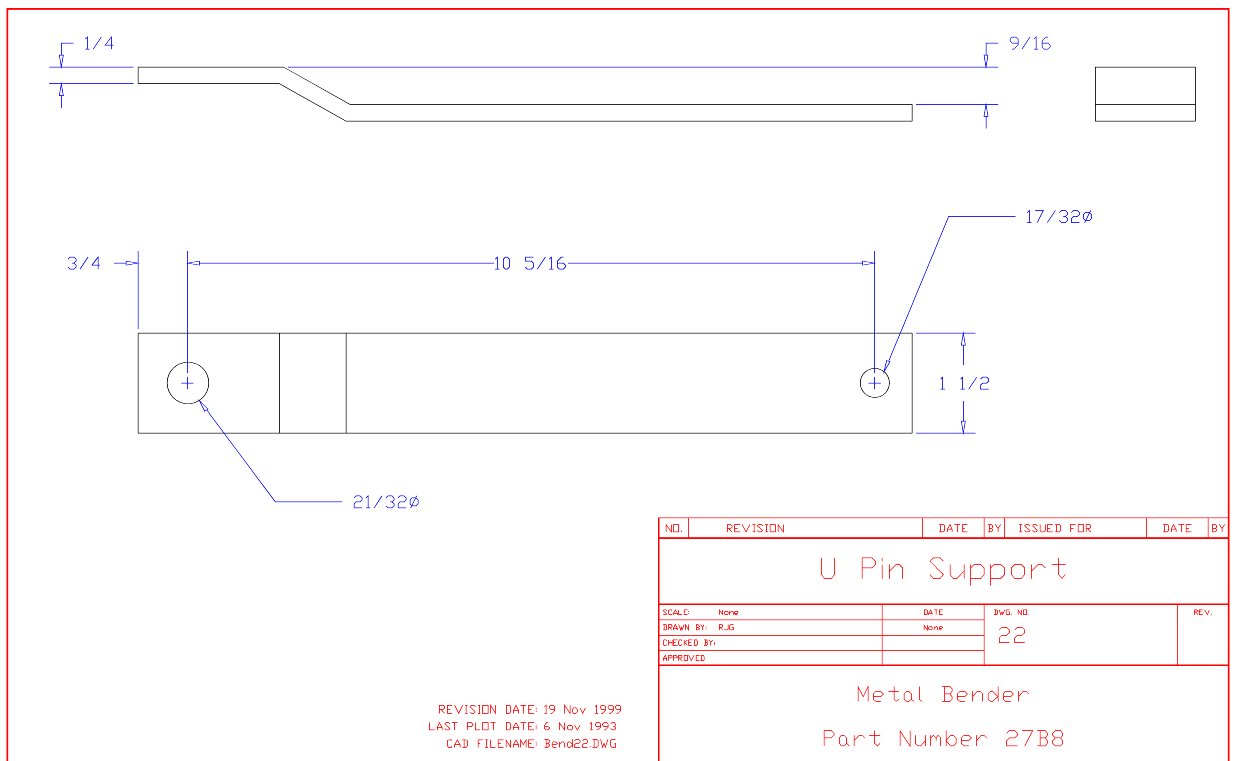

| Sheet 22 | U-pin Support |

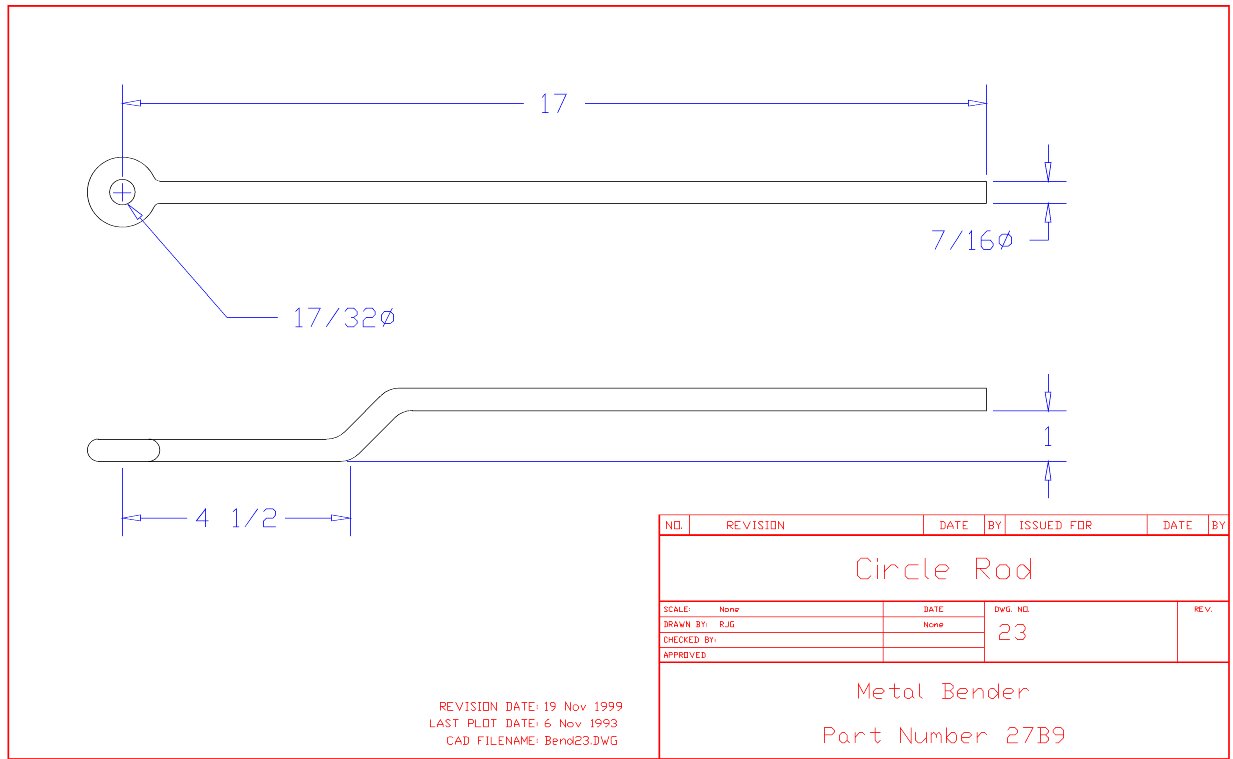

Sheet 23 | Circle Rod, 27B9 |

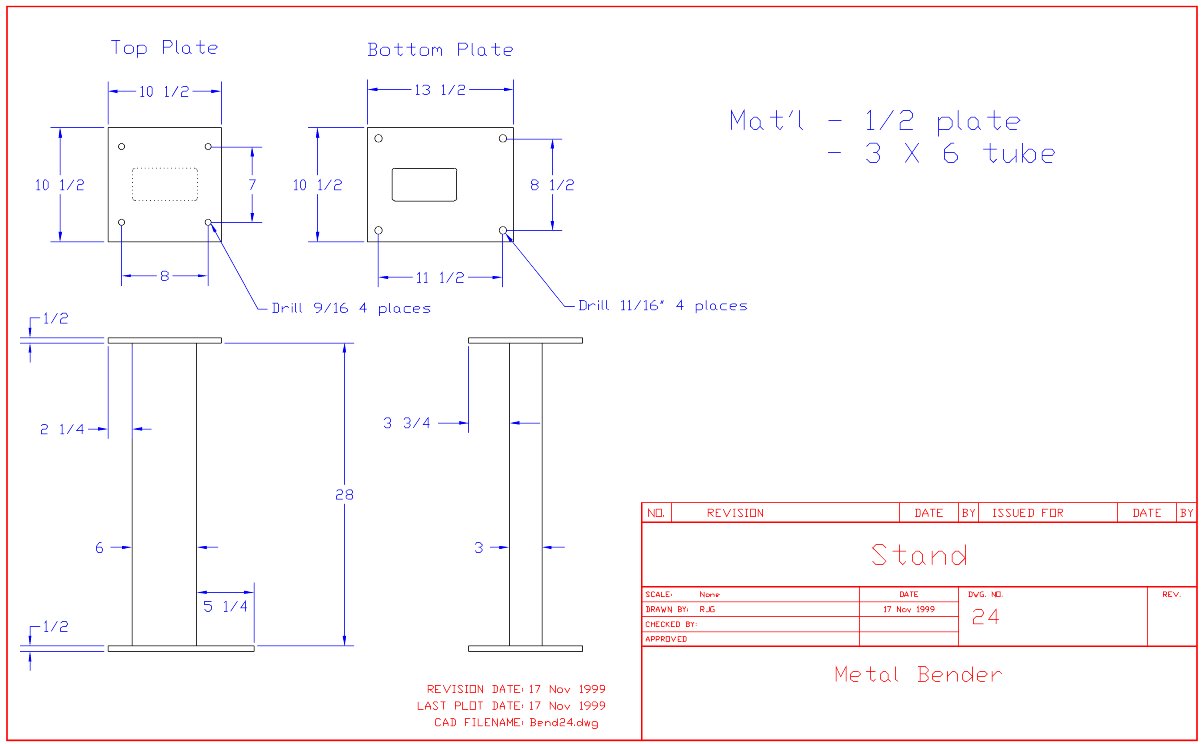

| Sheet 24 | Stand |

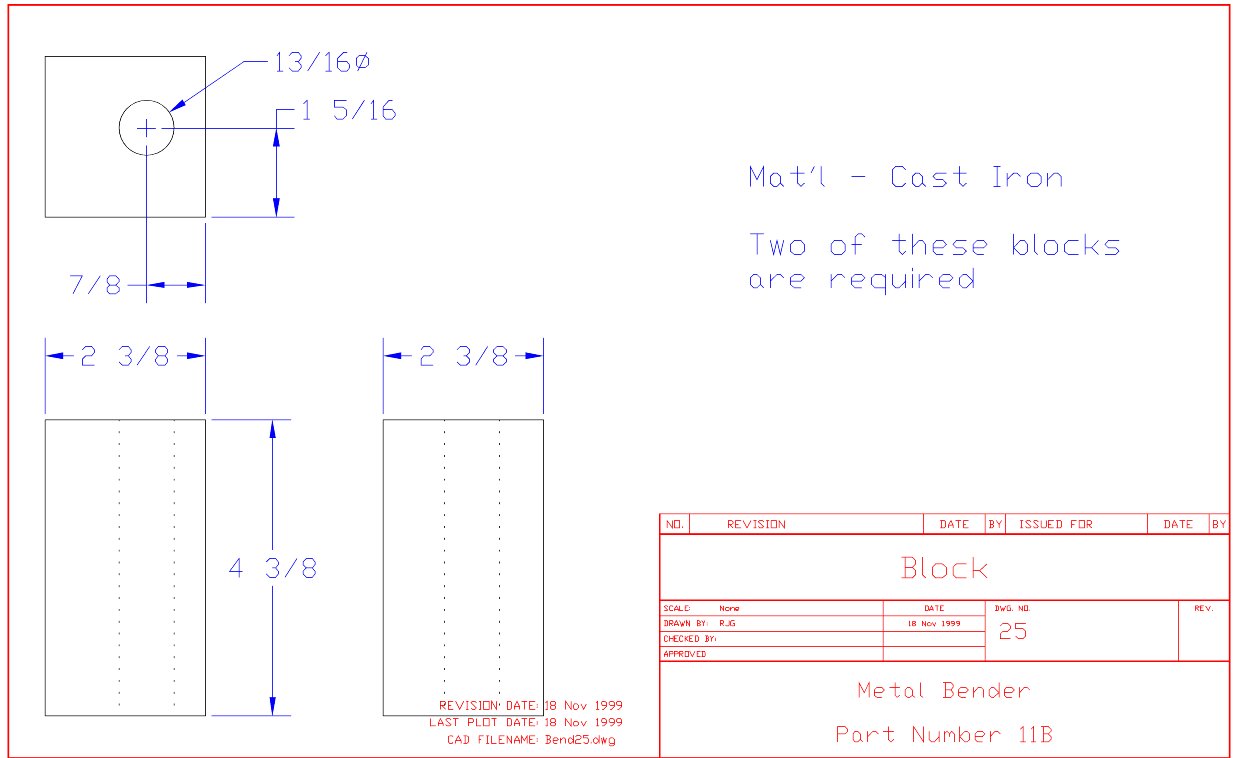

Sheet 25 | Bending Block |

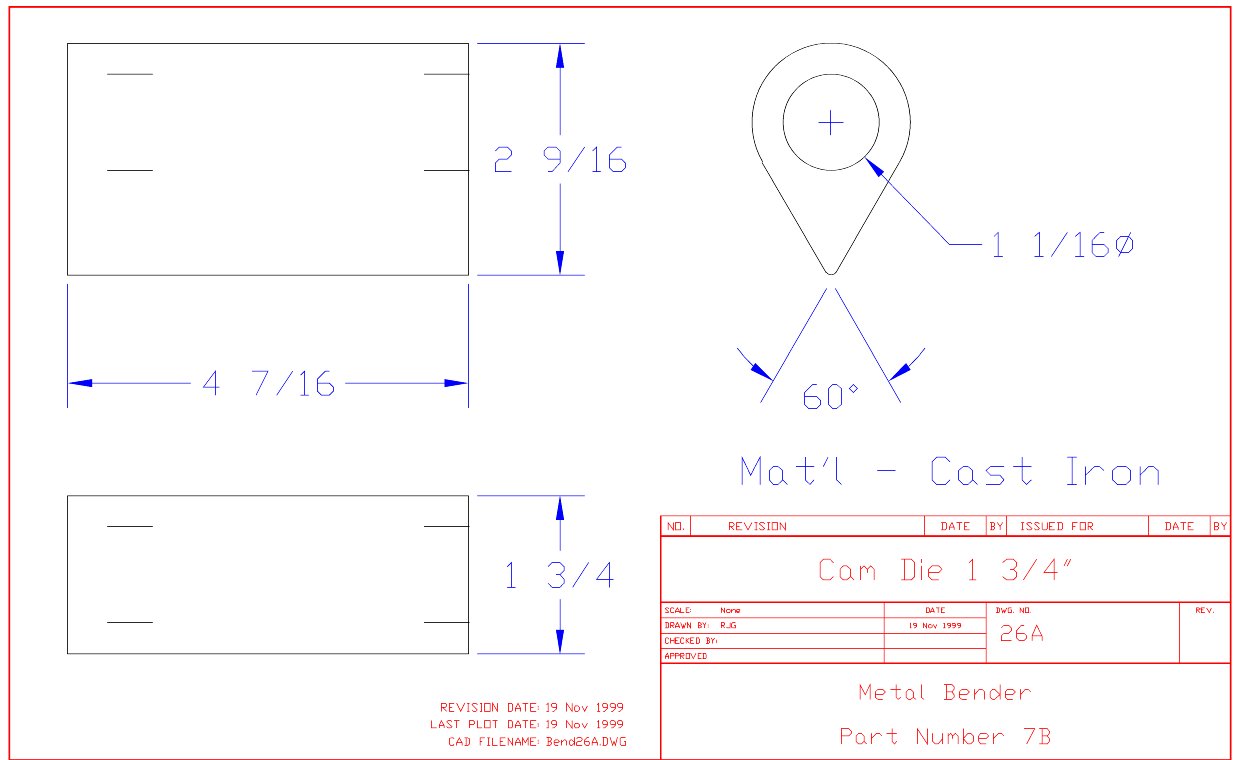

| Sheet 26a | Cam Die 1-3/4", 7B |

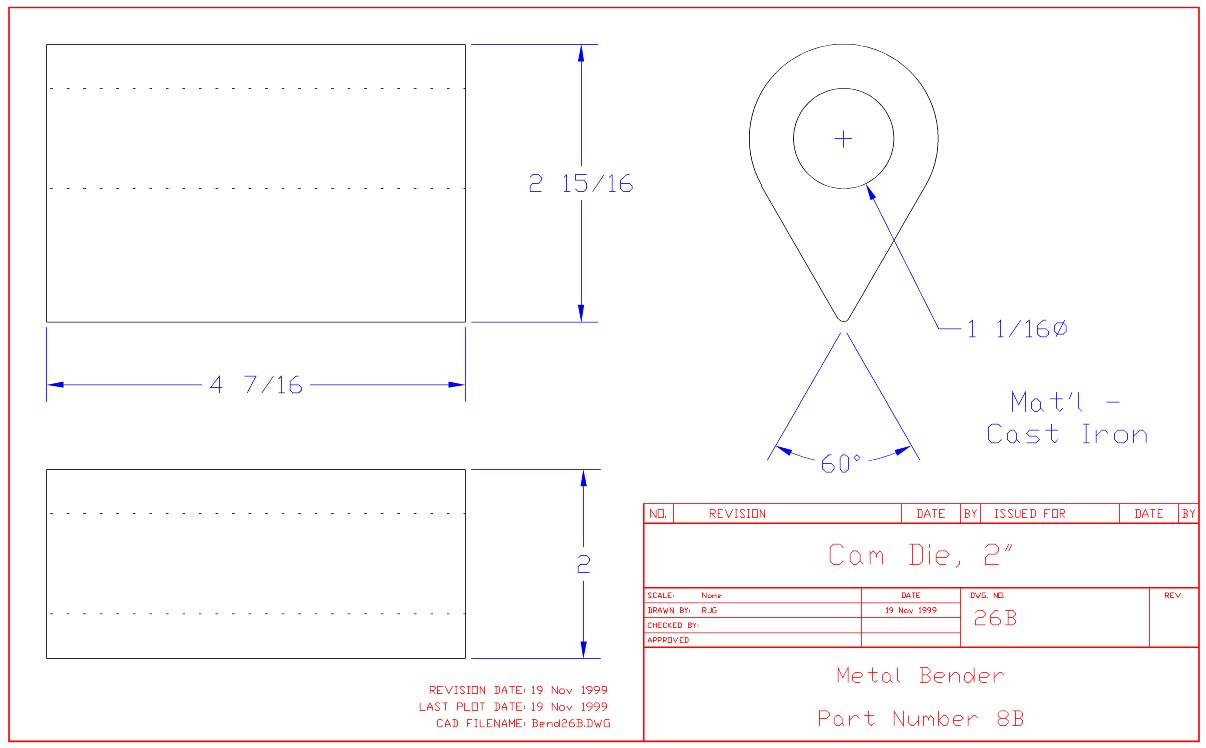

Sheet 26b | Cam Die 2", 8B |

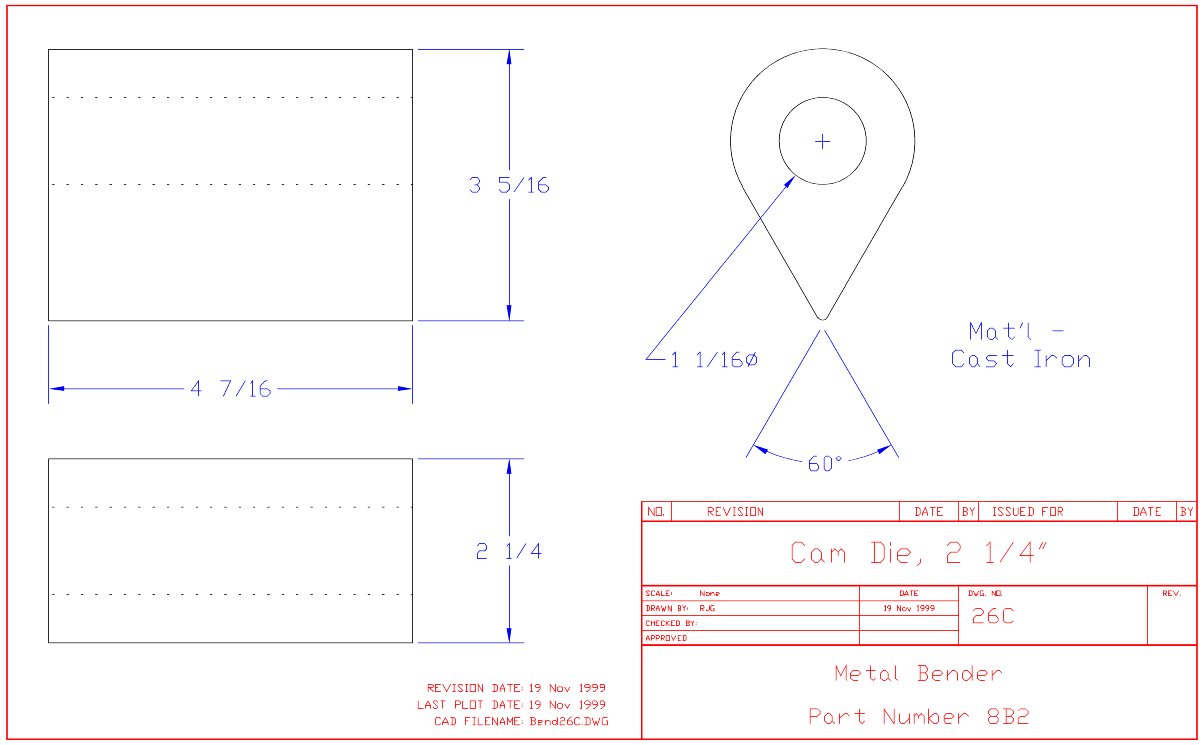

| Sheet 26c | Cam Die 2-1/4", 8B2 |

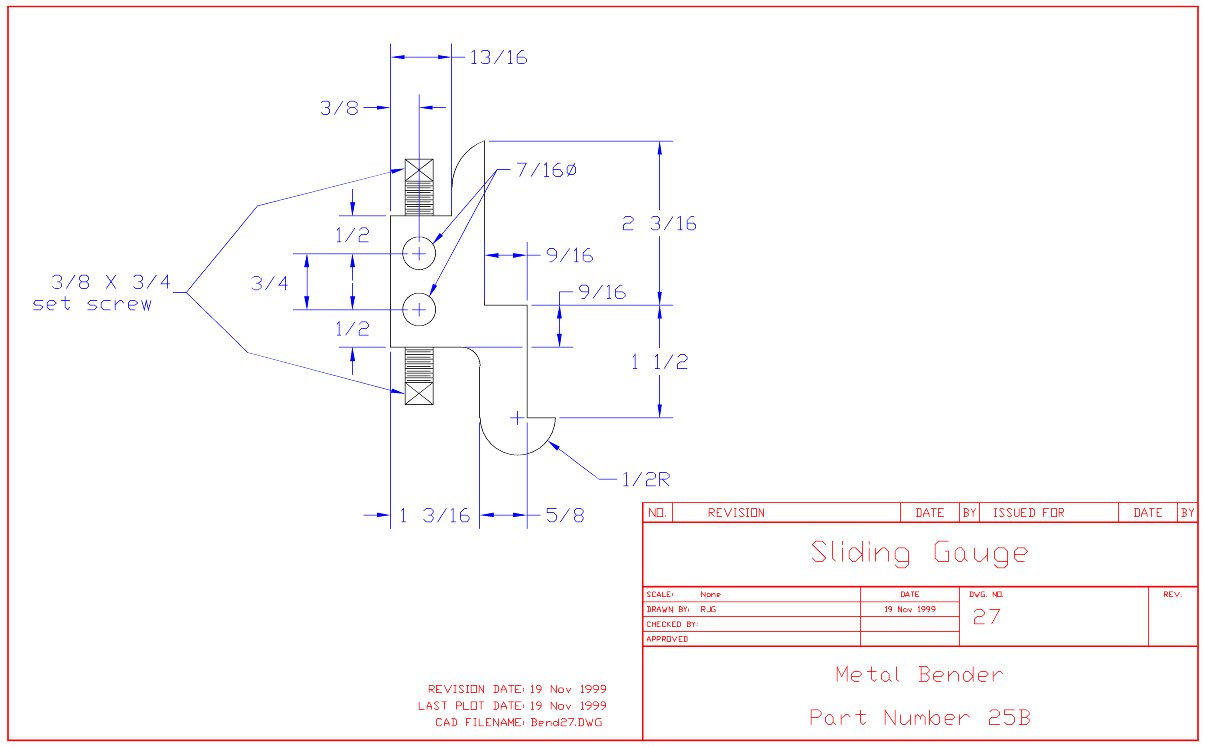

Sheet 27 | Sliding Gauge, 25B |

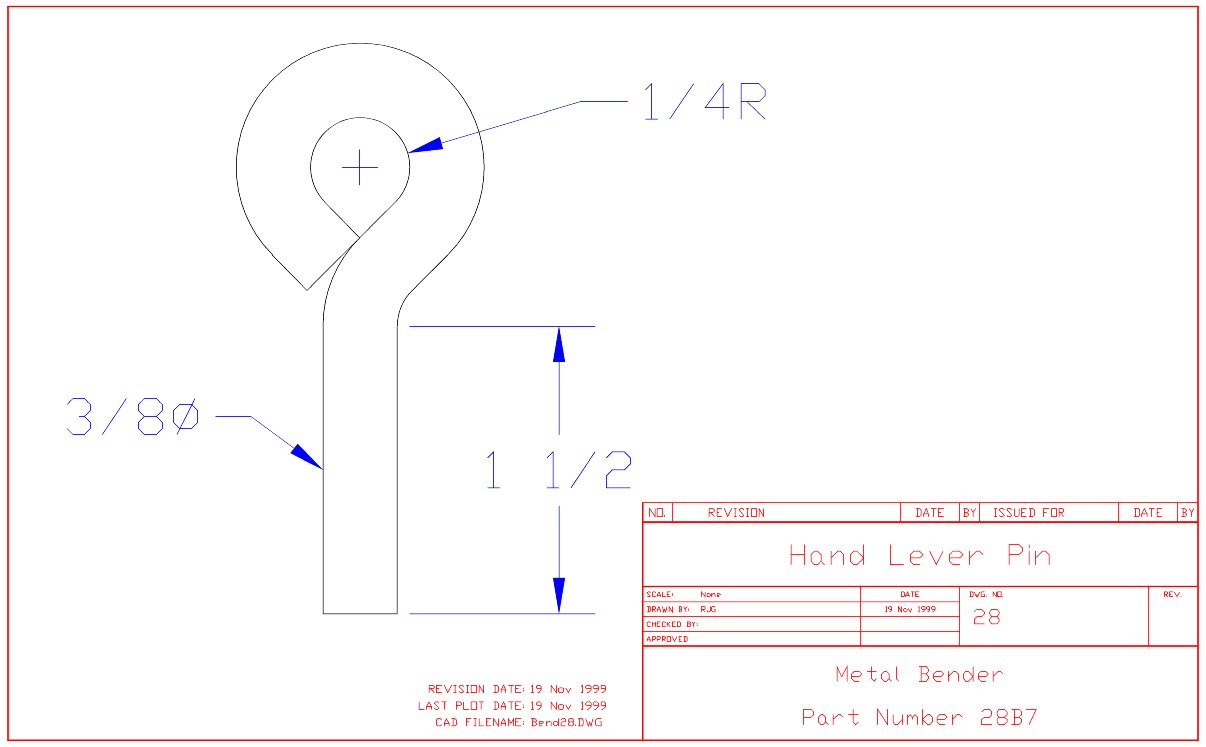

| Sheet 28 | Hand Lever Pin |

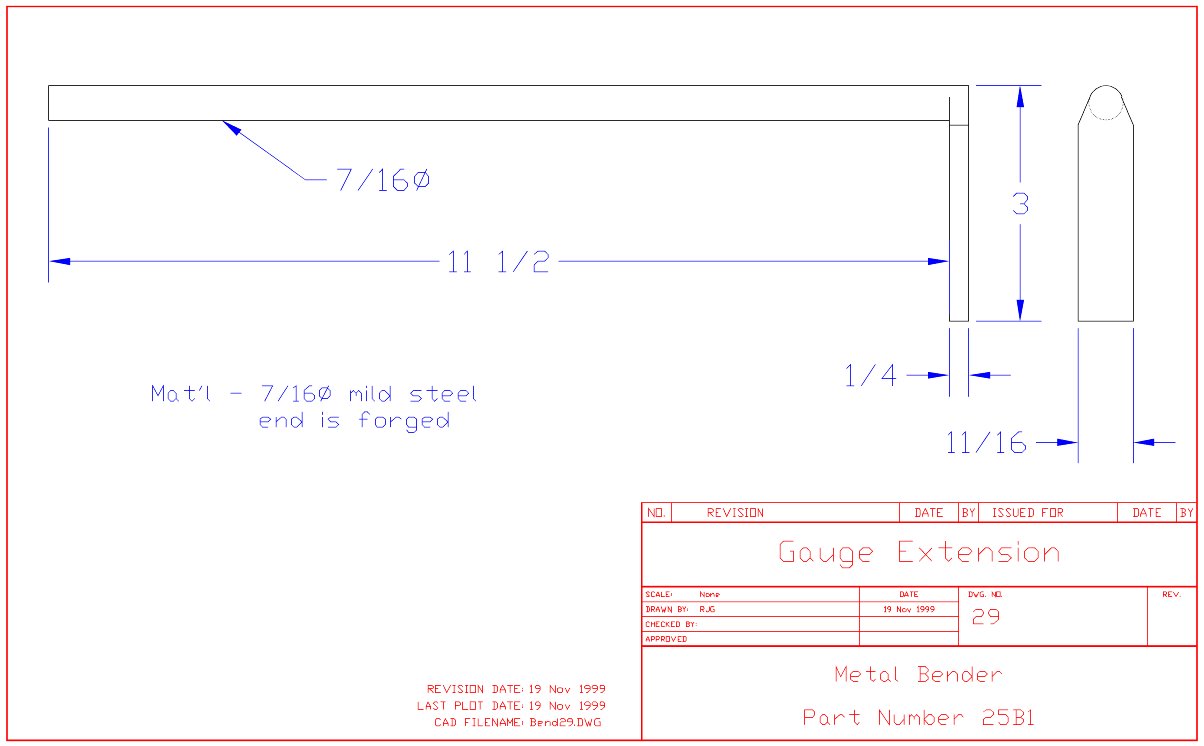

Sheet 29 | Gauge Extension, 25B1 |

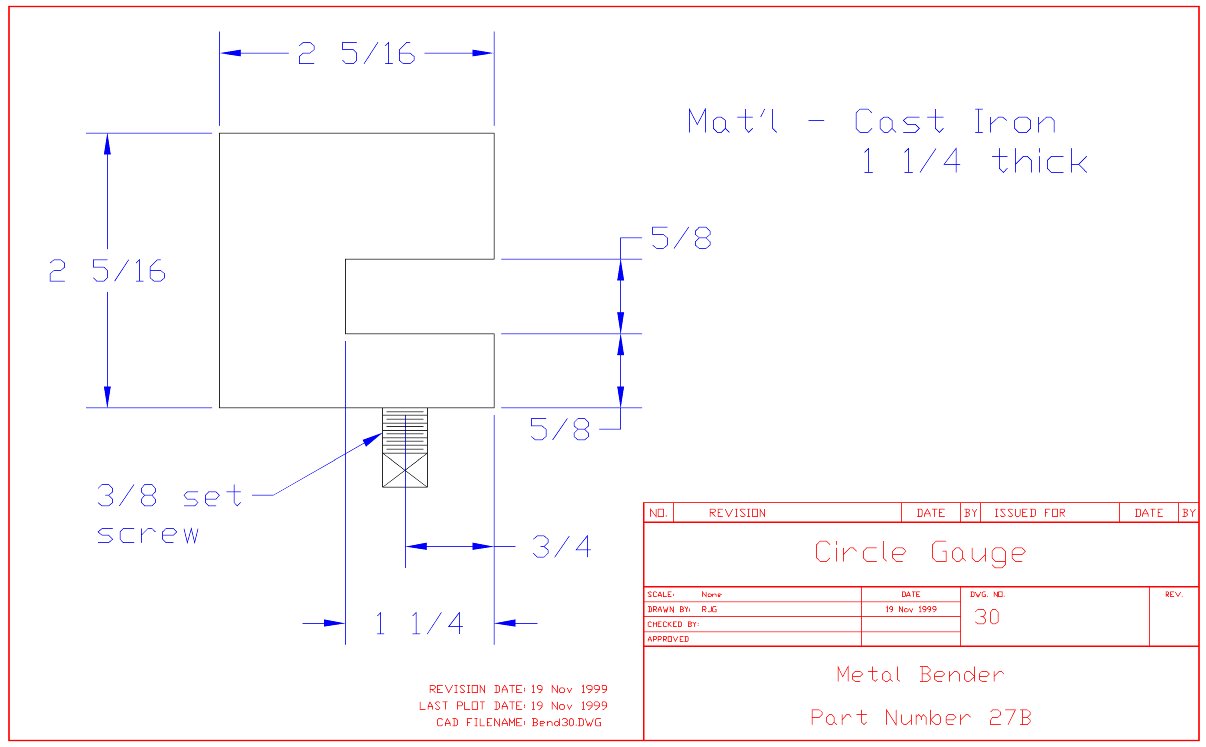

| Sheet 30 | Circle Gauge, 27B |

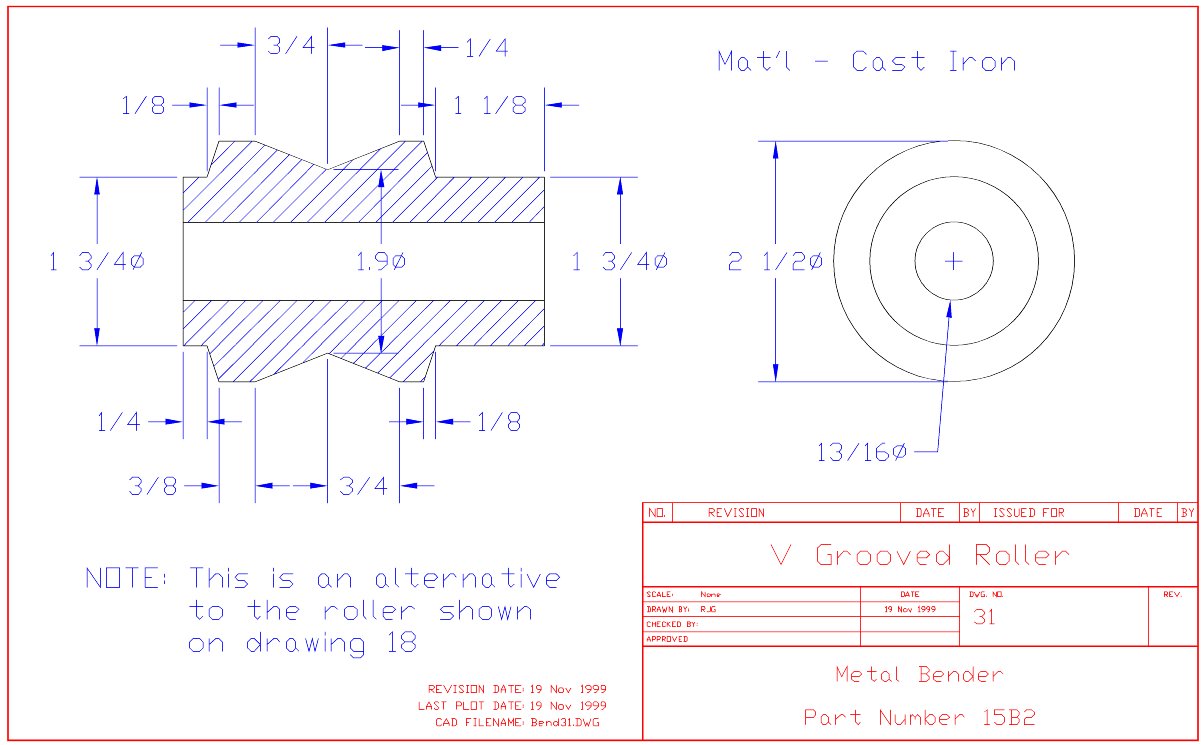

Sheet 31 | V-grooved Roller, 15B2 |

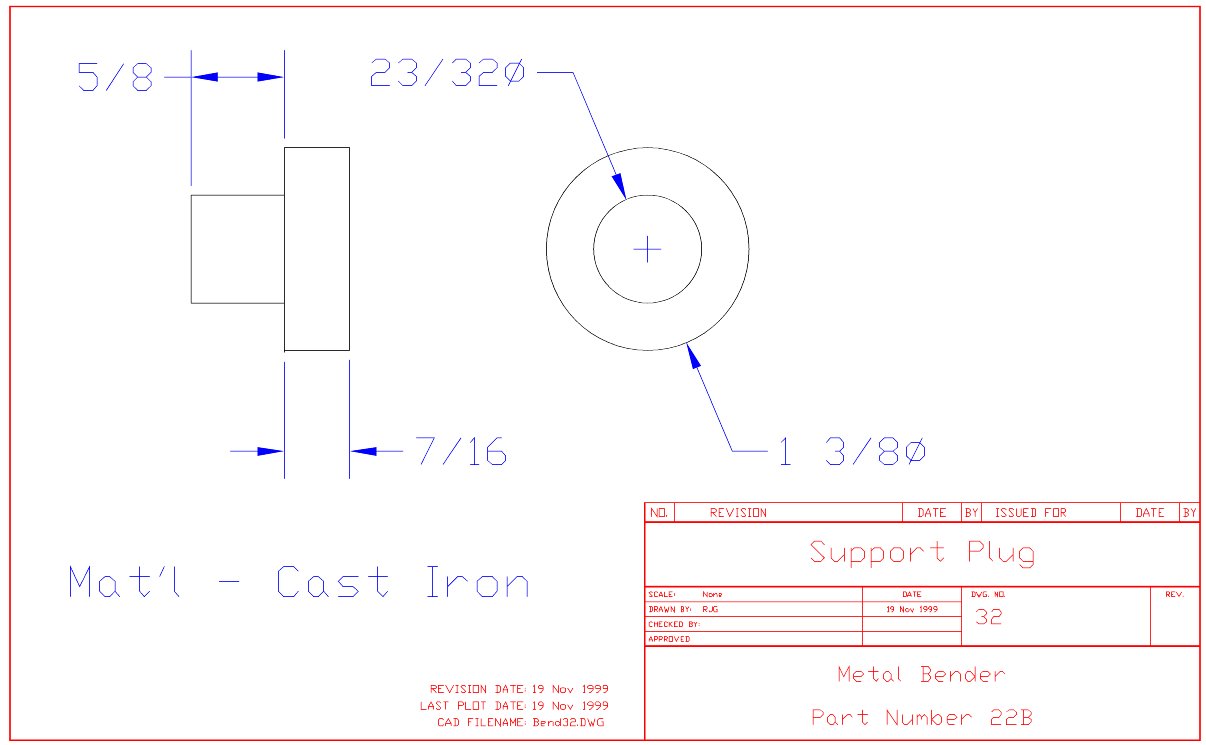

| Sheet 32 | Support Plug, 22B |

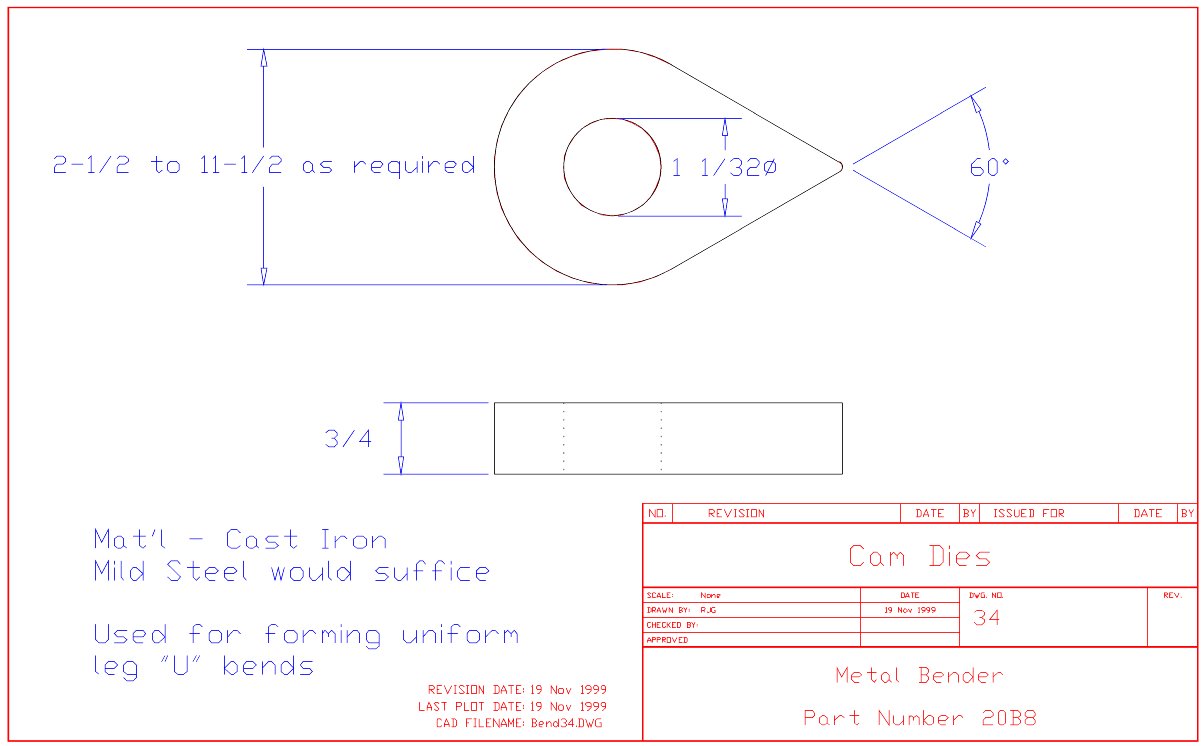

Sheet 34 | Cam Dies |

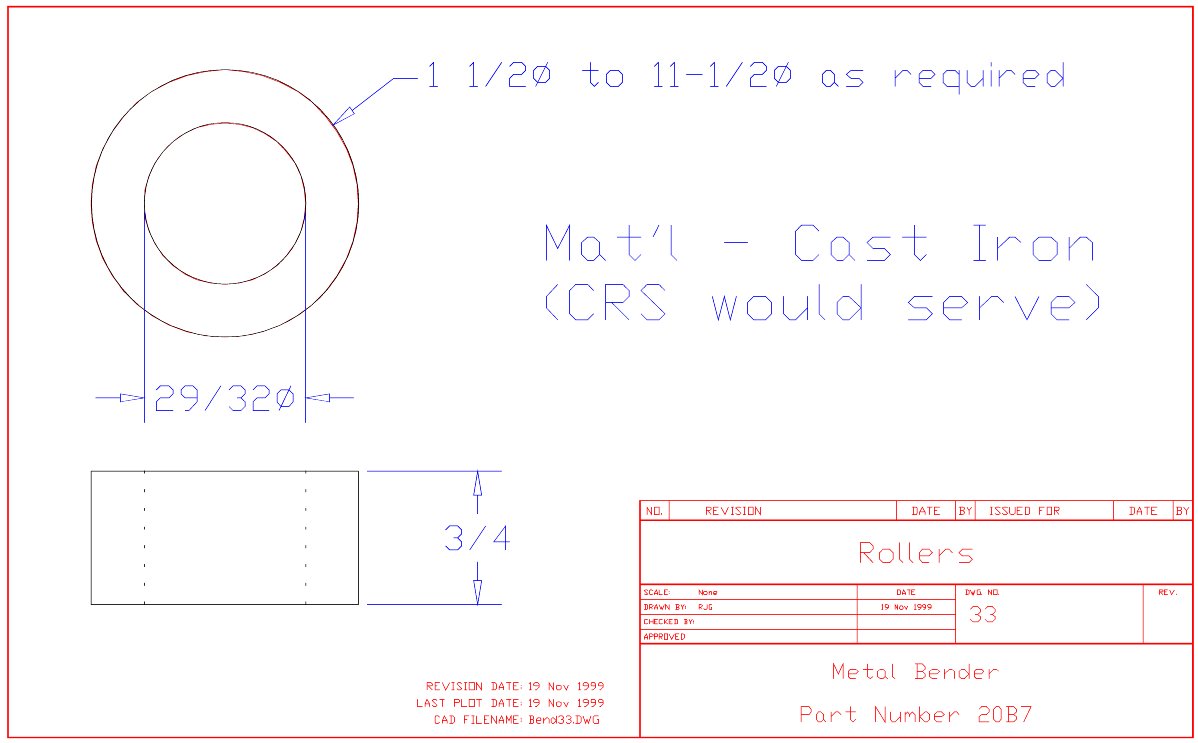

| Sheet 33 | Rollers incl. 20B7 |

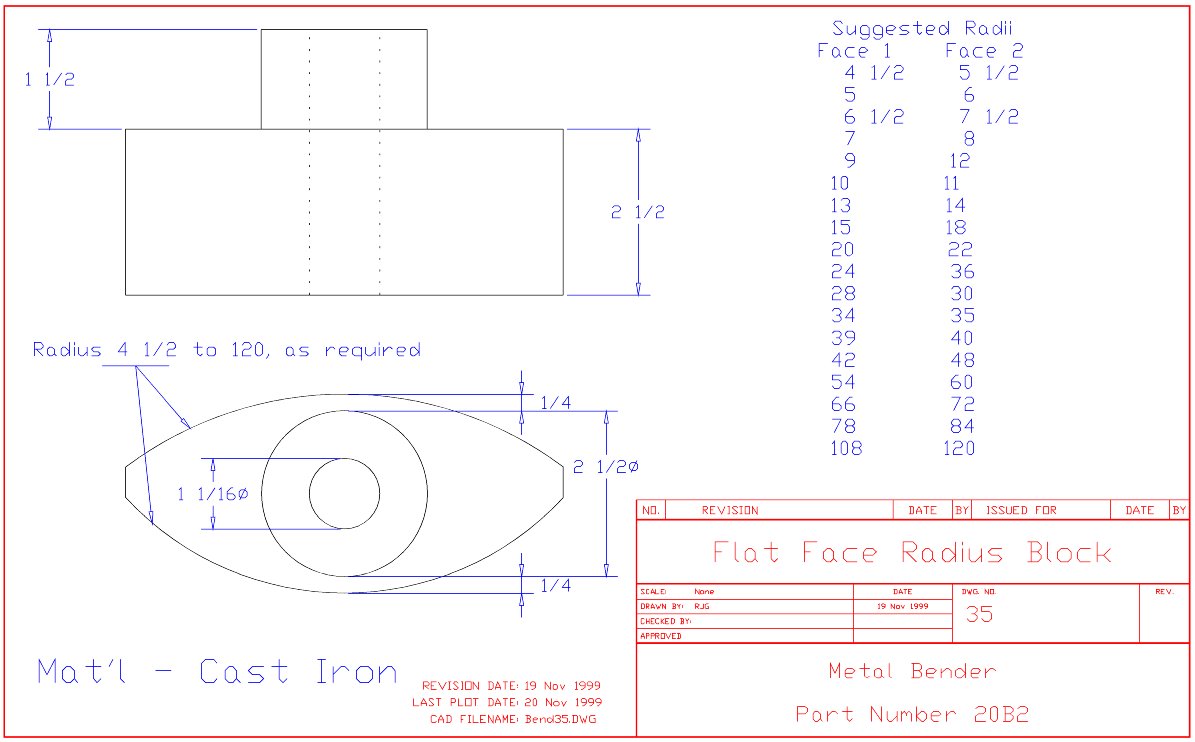

Sheet 35 | Flat Face Radius Blocks |
|
|
