Indexing/Dividing Head Controller

Setup Menu

The first two items of the setup menu allow the parameters of the indexing head and stepper motor to be viewed and modified.

Selecting the third menu item will reset all parameters to their default values. This is useful because when data items are changed througout the menuing system, their values are stored in non-volatile memory so that the same values remain when the system is powered up again. Resetting the "factory defaults" essentially wipes the slate clean and restores the system to a known state.

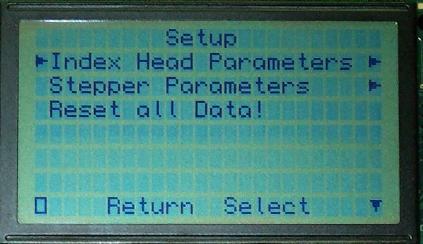

The images below represent the "next" menu screen corresponding to the first two items on the setup menu. Click on them to see a larger version of the image together with commentary about the respective screens.
