Indexing/Dividing Head Controller
|

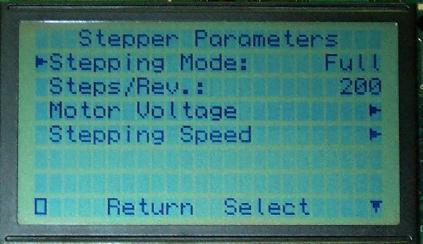

Stepper Setup Menu |
 |
|
The first item on this menu allows the operating mode of the stepper to be specified. Selecting
this item toggles between Full and Half stepping modes.
The second item specifies the number of steps per revolution of the stepper motor. The images below represent the "next" menu screen corresponding to the third and fourth items on the menu. Click on them to see a larger version of the image together with commentary about the respective screens. |
|
